Yuchai engine Natural Gas Generator specification
| Genset model | 50HZ, 400/230V, 3ph | Gas engine | Alternator | Overall size (mm) | Weight (kg) | ||||||
| Prime power KW | Prime power KVA | Engine model | Prime power (KW) | No. of cylinder | Bore*Stroke | Displacement (L) | Oil capacity | Model | |||
| UY50GF-T | 50 | 63 | YC4D90N-D30 | 60 | 4 | 108*115 | 5.2 | 9 | WHI224E | 1650*850*1400 | 910 |
| UY80GF-T | 80 | 100 | YC4G135N-D30 | 90 | 4 | 112*132 | 5.2 | 17.5 | WHI274C | 1700*850*1600 | 950 |
| UY100GF-T | 100 | 125 | YC6G180N-D30 | 120 | 6 | 112*132 | 7.8 | 25.5 | WHI274ES | 2420*1000*1600 | 1600 |
| UY120GF-T | 120 | 150 | YC6G205N-D30 | 138 | 6 | 112*132 | 7.8 | 25.5 | WHI274E | 2420*1000*1600 | 1600 |
| UY150GF-T | 150 | 188 | YC6MK270N-D30 | 180 | 6 | 123*145 | 10.3 | 28 | WHI274G | 3120*1050*1750 | 2100 |
| UY180GF-T | 180 | 225 | YC6MK315N-D30 | 210 | 6 | 123*145 | 10.3 | 32 | WHI274J | 3120*1050*1750 | 2200 |
| UY200GF-T | 200 | 250 | YC6K350N-D30 | 235 | 6 | 129*165 | 12.9 | 32 | WHI274K | 3200*1150*1750 | 2500 |
| UY250GF-T | 250 | 313 | YC6K420N-D30 | 281 | 6 | 129*165 | 12.9 | 32 | WHI4ES | 3200*1150*1750 | 2500 |
| UY280GF-T | 280 | 350 | YC6T450N-D30 | 300 | 6 | 145*165 | 16.35 | 48 | WHI4FS | 3450*1200*1900 | 3480 |

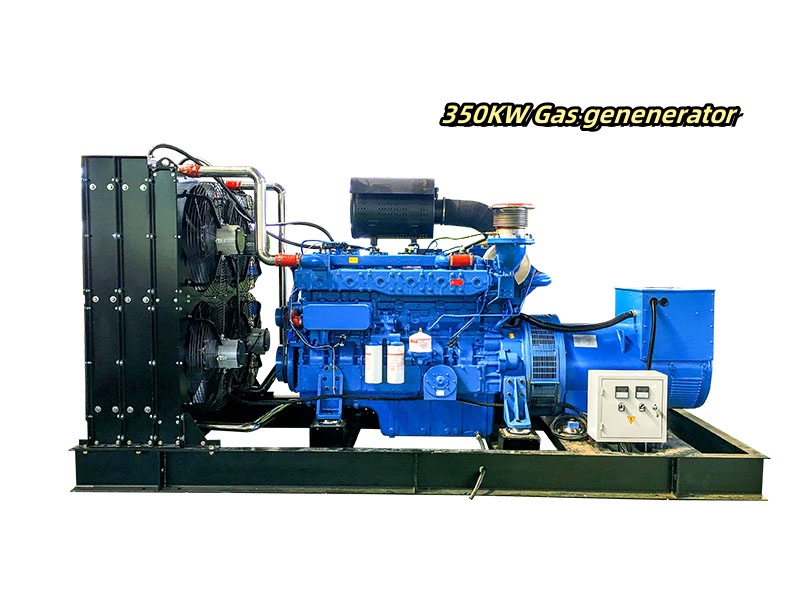

| UY350GF-T | 350 | 438 | YC6TD600N-D30 | 400 | 6 | 152*180 | 19.6 | 52 | WHI5C | 3750*1200*1950 | 3950 |
| UY500GF-T | 500 | 625 | YC6C935N-D30 | 625 | 6 | 200*210 | 39.58 | 130 | WHI5FS | 4800*1550*1900 | 6500 |
| UY600GF-T | 600 | 750 | YC6C1020N-D30 | 625 | 6 | 200*210 | 39.58 | 130 | WHI5FS | 4800*1550*1900 | 6500 |
The gas generator provide electricity and heating(CHP) for industrial parks, commercial building, hospitals, data centers, and more.
Provide emergency power in the event of a main grid failure in locations requiring high power continuity, such as hospitals, financial centers, and communication base stations.
Compensate for the intermittent nature of renewable energy (such as wind power and solar energy), enabling rapid startup during peak demand periods to balance grid load.
The oilfield associated gas generator directly utilize associated gas generated during oil and gas field extraction to generate electricity, avoiding the waste and pollution caused by gas venting.
After treatment, this gas can also be used as fuel for gas-fired generators, realizing waste resource utilization.
