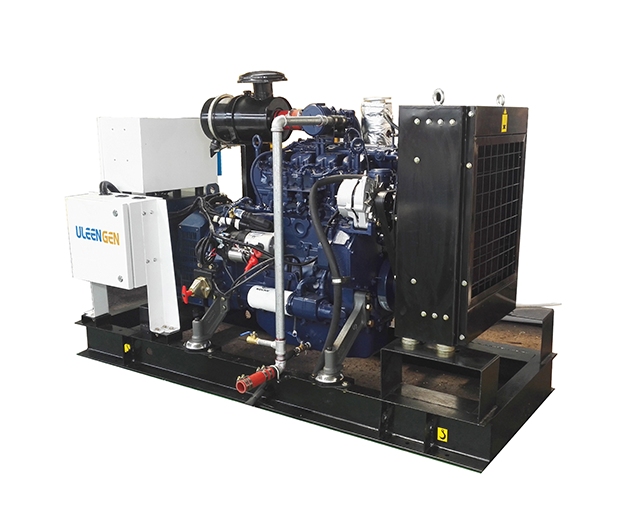

Weichai Gas Generator

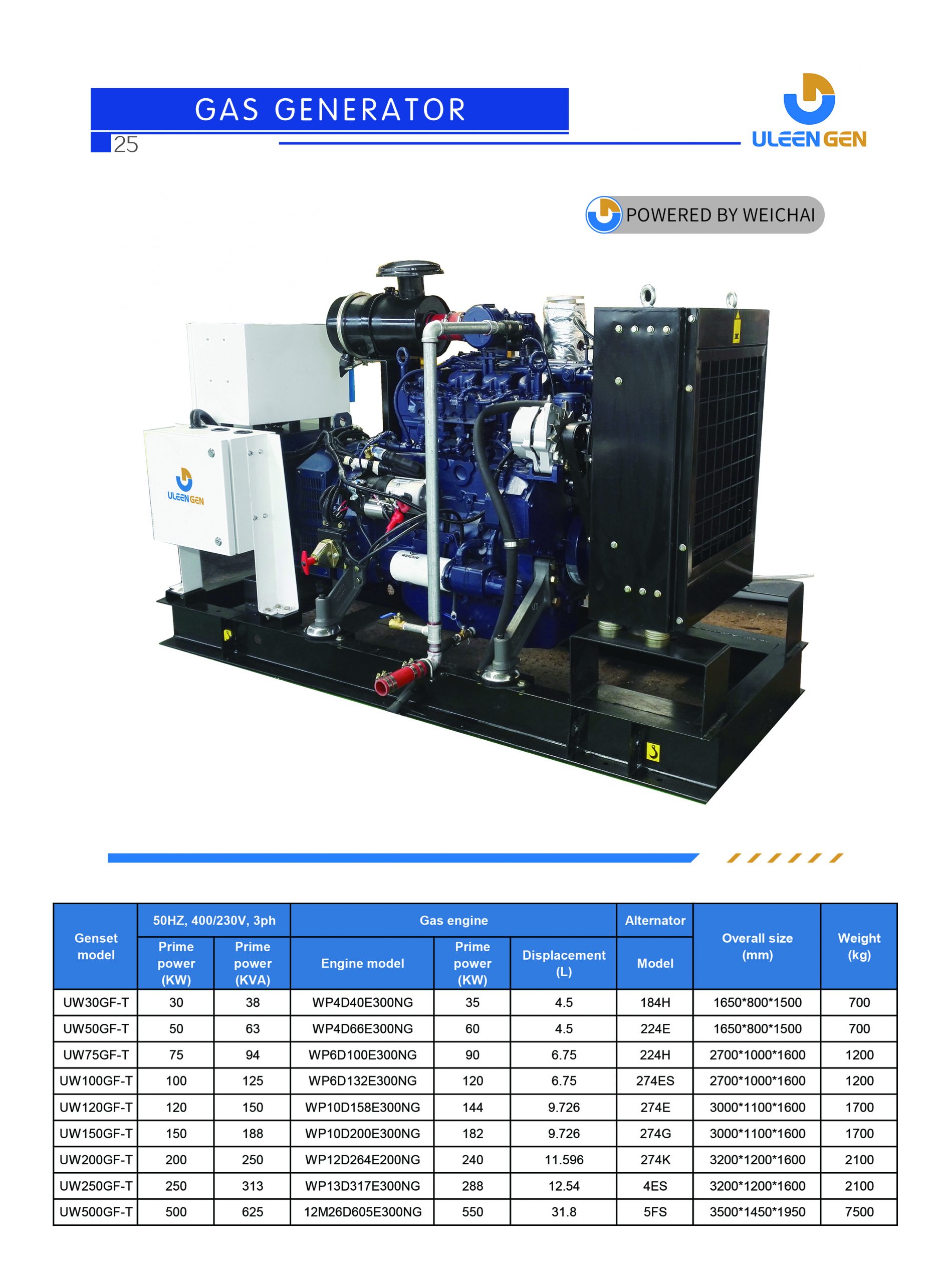

Natural Gas Generator specification

Genset model	50HZ, 400/230V, 3ph		Gas engine					Alternator	Overall size          (mm)	Weight  (kg)
	Prime power     KW	Prime power       KVA	Engine model	Prime power (KW)	No. of cylinder	Bore*Stroke	Displacement (L)	Model
UW30GF-T	30	38	WP4D40E300NG	35	4	105*130	4.5	TCU188DS	1650*800*1500	700
UW50GF-T	50	63	WP4D66E300NG	60	4	105*130	4.5	TCU288C	1650*800*1500	700
UW75GF-T	75	94	WP6D100E300NG	90	6	105*130	6.75	TCU288G	2700*1000*1600	1200
UW100GF-T	100	125	WP6D120E200NG	109	6	105*130	6.75	TCU228K	2700*1000*1600	1200
UW120GF-T	120	150	WP10D158E300NG	144	6	126*130	9.726	TCU228M	3000*1100*1600	1700
UW150GF-T	150	188	WP10D200E200NG	182	6	126*130	9.726	TCU288C	3000*1100*1600	1700
UW200GF-T	200	250	WP12D264E200NG	240	6	126*155	11.596	TCU288F	3200*1200*1600	2100
UW250GF-T	250	313	WP13D317E200NG	288	6	127*165	12.54	TCU288J	3200*1200*1600	2100
UW400GF-T	400	500	6M33D450E310NG	450	6	150*185	19.6	TCU318E	3500*1450*2060	4550
UW500GF-T	500	625	12M26D605E300NG	550	12	150*150	31.8	TCU368D	4200*1800*2100	7500
UW800GF-T	800	1000	12M33D900E310NG	900	12	150*185	39.2	TCU428C	4600*2000*2300	8600
UW1000GF-T	1000	1250	16M33D1280NG10	1280	16	150*185	52.3	TCU428E	6090*2300*2800	12300

The gas requirement for the gas generator set

Natural gas generator required CH4 content: ≥85% CH4

Biogas generator required methane content: ≥40%

Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Gen set output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.

Gas does’t include free water or free materials (the size of impurities should be less than 5μm.)

H2S content≤200mg/NM³

NH3 content≤20mg/NM³

Impurities content≤30mg/NM³;size≤5μm

Water content≤40g/NM³, no free water.



Acceptable working conditions:

Ambient temperature : -10°C~+40°C

(antifreeze or preheater needed for below 0‘C)

Relative humidity:<90%(20’C)

Altitude:≤1000m

Normal working conditions:

Gen set can run at rated power on the conditions:

Atmospheric Pressure: 100kPa, Ambient Temp: 20’C, Relative Humidity: 30%.



Gas generator advantages

• Environmental friendly, Clean Combustion and Low Pollutant Emissions:

Natural gas is the cleanest energy source among fossil fuels. Its primary component is methane (CH₄). Combustion primarily produces carbon dioxide (CO₂) and water (H₂O), with virtually no sulfur oxides (SOx) or particulate matter (PM).

It also significantly reduces nitrogen oxide (NOx) emissions compared to coal and diesel. Modern gas generators using low-NOx combustion technology can achieve extremely low NOx emissions.

• Reduced Greenhouse Gas Emissions:

Natural gas has a low carbon intensity. For the same amount of electricity produced, its carbon dioxide (CO₂) emissions are approximately 40-50% lower than coal and 25-30% lower than oil. This helps combat climate change and reduce our carbon footprint.

• Economic operation cost

In many regions, especially in countries with abundant natural gas resources (such as the United States, Russia, Iran, China, Canada, Qatar, Australia, Saudi Arabia, Algeria, Kazakhstan, Uzbekistan,etc  ), natural gas prices are typically lower than diesel. Although subject to market fluctuations, its long-term cost advantage is significant.

For projects with direct natural gas pipeline supply, the fuel supply is stable, eliminating the need for frequent transportation and storage required for diesel.

• High Power Generation Efficiency:

Modern natural gas generator sets offer very high power generation efficiency. Simple cycle efficiencies can reach 40-45%, while when operating in combined heat and power (CHP) or combined cooling, heating, and power (CHP) modes, overall energy efficiency can reach over 80-90%. This means that the energy content of the fuel is fully utilized, resulting in significant economic benefits.
