Uleengen 600KW Yuchai Diesel Generator Delivery YC6TD1000-D30 to a Shopping mall in Uzbekistan

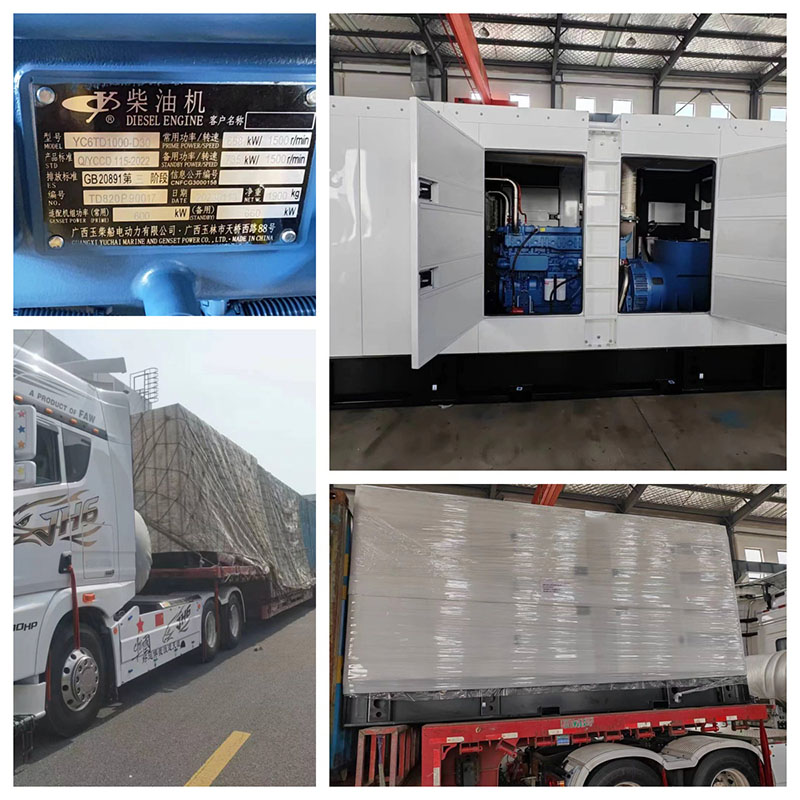

Uleengen 600KW Yuchai diesel generator delivery to Uzbekistan
600KW Generator set specification
| Voltage | HZ | phase | P.F | Standby/Prime | Standby Power KVA | Prime Power KVA |
| 400/230V | 50 | 3 | 0.8 | 1190/1082A | 825 | 750 |

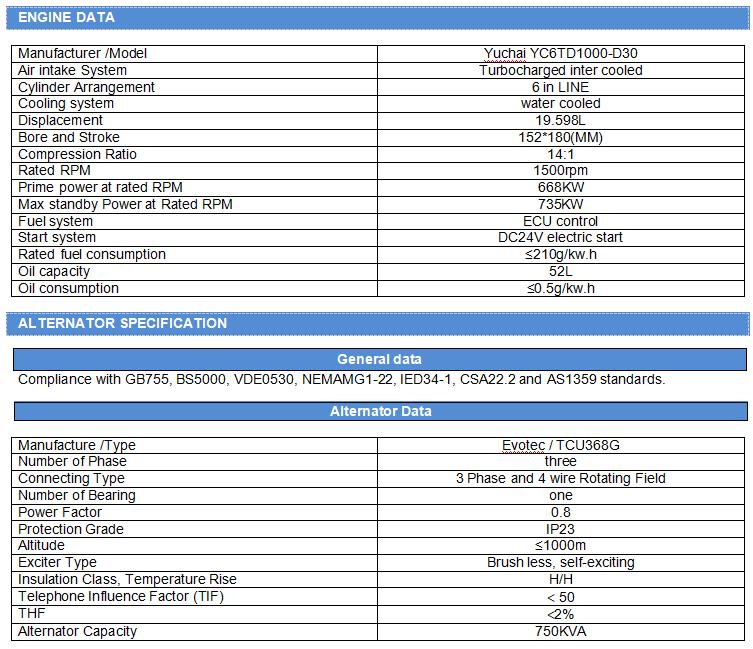

Engine specification
|
Manufacturer /Model |
Yuchai YC6TD1000-D30 |
|
Air intake System |
Turbocharged inter cooled |
|
Cylinder Arrangement |
6 in LINE |
|
Cooling system |
water cooled |
|
Displacement |
19.598L |
|
Bore and Stroke |
152*180(MM) |
|
Compression Ratio |
14:1 |
|
Rated RPM |
1500rpm |
|
Prime power at rated RPM |
668KW |
|
Max standby Power at Rated RPM |
735KW |
|
Fuel system |
ECU control |
|
Start system |
DC24V electric start |
|
Rated fuel consumption |
≤210g/kw.h |
|
Oil capacity |
52L |
|
Oil consumption |
≤0.5g/kw.h |
Alternator specification
|
Manufacture /Type |
Evotec / TCU368G |
|
Number of Phase |
three |
|
Connecting Type |
3 Phase and 4 wire Rotating Field |
|
Number of Bearing |
one |
|
Power Factor |
0.8 |
|
Protection Grade |
IP23 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brush less, self-exciting |
|
Insulation Class, Temperature Rise |
H/H |
|
Telephone Influence Factor (TIF) |
< 50 |
|
THF |
<2% |
|
Alternator Capacity |
750KVA |
