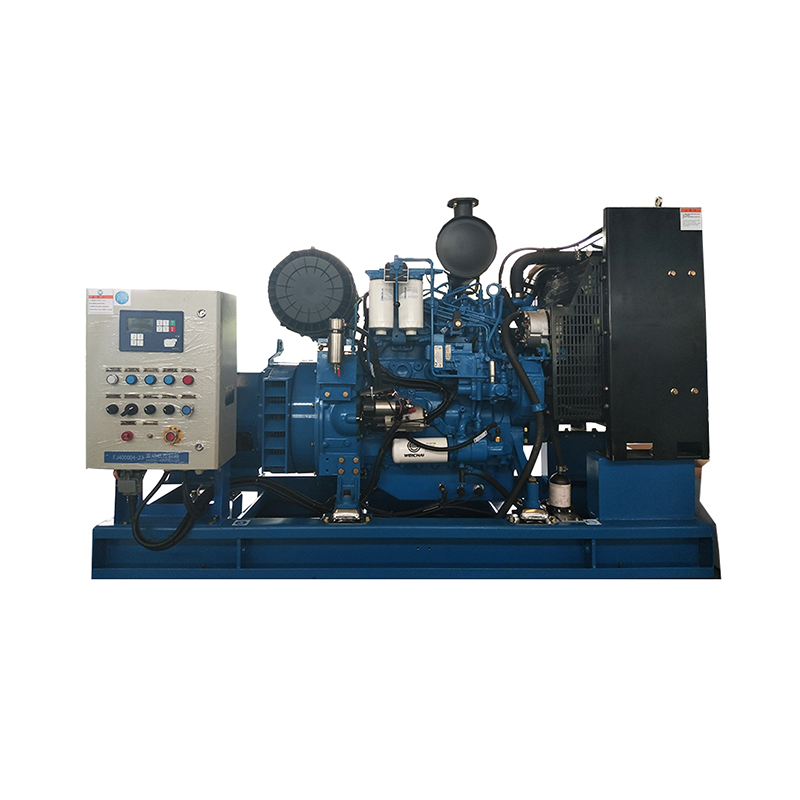

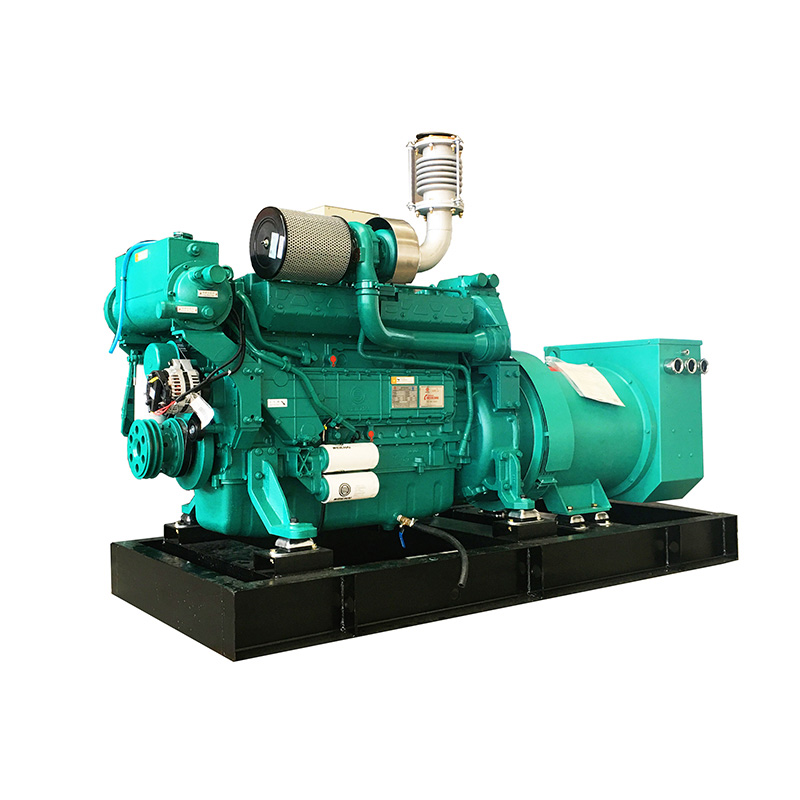

Weichai Marine Generator

50/60HZ available
The marine alternator can be Marathon, Stamford and famous China alternator.
The engine with 4 storke and water cooling by sea water heat exchanger.
with a power range from 10 to 1000kw, Weichai power marine generator sets are widely used as the main power or as a backup power for every maritime requirement.
With CCS certificate
Weichai marine generators widely use for gill netters and ferries.yachts and tugboats, fishing boats, fire boats, seiners, crew boats.

Leave a message View brochure

Specifications

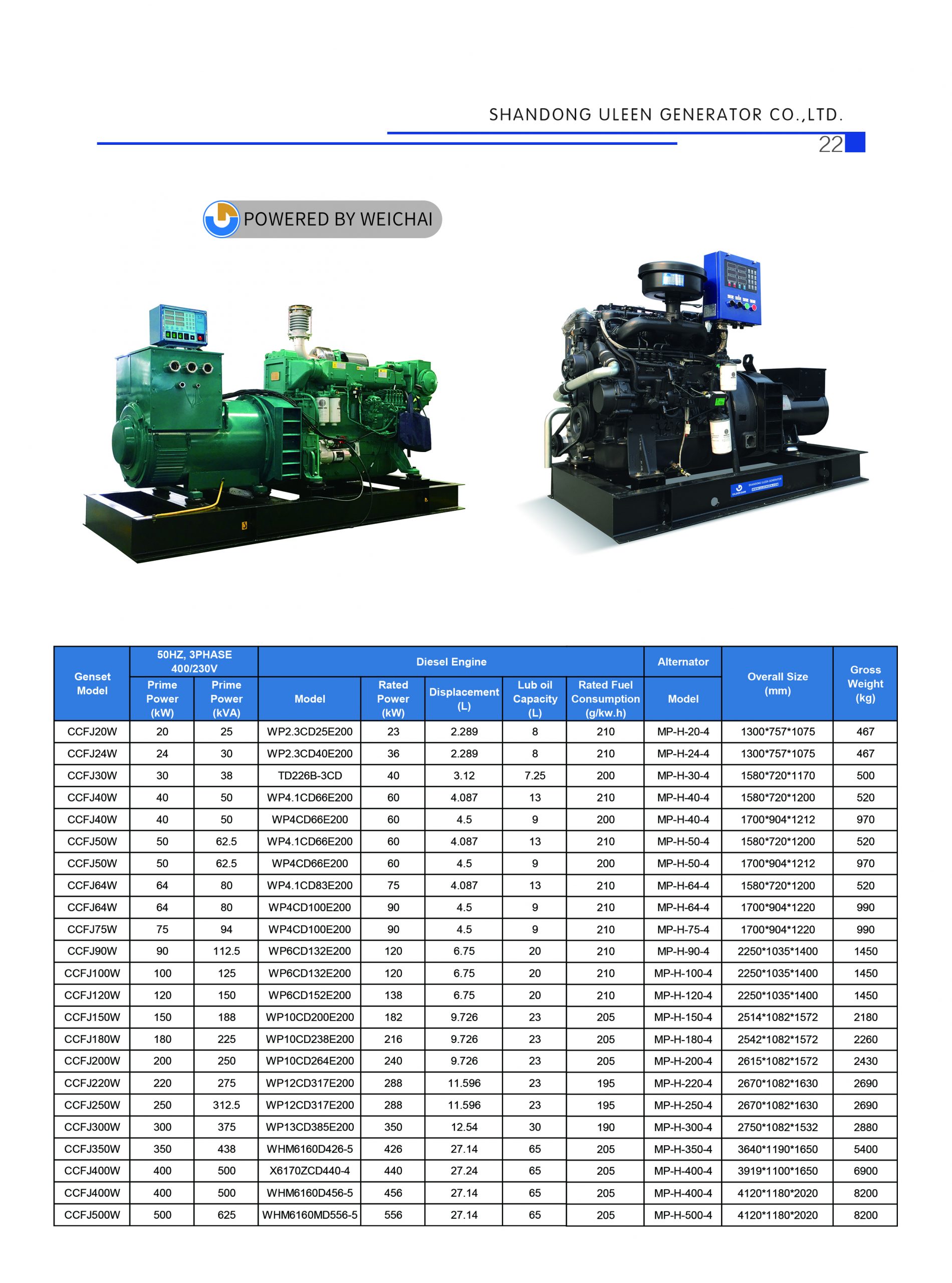

Genset Model	50HZ, 400/230V		Diesel Engine							Alternator	Overall Size (mm)	Gross Weight (kg)
Genset Model	Prime Power (kW)	Prime Power (kVA)	Model	Rated Power (kW)	No. of Cylinder	Bore xStroke (mm)	Displacement (L)	PRM	Emission	Model	Overall Size (mm)	Gross Weight (kg)
CCFJ20W	20	25	WP2.3CD25E200	23	4	89*92	2.289	1500	IMO II	MP-H-20-4	13007571075	467
CCFJ24W	24	30	WP2.3CD33E200	30	4	89*92	2.289	1500	IMO II	MP-H-24-4	13007571075	475
CCFJ30W	30	38	WP2.3CD40E200	36	4	89*92	2.289	1500	IMO II	MP-H-30-4	13007571075	490
CCFJ40W	40	50	WP4.1CD66E200	60	4	105*118	4.087	1500	IMO II	MP-H-40-4	15807201200	520
CCFJ50W	50	63	WP4.1CD66E200	60	4	105*118	4.087	1500	IMO II	MP-H-50-4	15807201200	520
CCFJ64W	64	80	WP4.1CD83E200	75	4	105*118	4.087	1500	IMO II	MP-H-64-4	15807201200	520
CCFJ50W	50	63	WP4CD66E200	60	4	105*130	4.5	1500	IMO II	MP-H-50-4	17009041212	1000
CCFJ64W	64	80	WP4CD100E200	90	4	105*130	4.5	1500	IMO II	MP-H-64-4	18009611212	1100
CCFJ75W	75	94	WP4CD100E200	90	4	105*130	4.5	1500	IMO II	MP-H-75-4	18009611212	1150
CCFJ90W	90	113	WP6CD132E200	120	6	105*130	6.75	1500	IMO II	MP-H-90-4	225010351400	1450
CCFJ100W	100	125	WP6CD132E200	120	6	105*130	6.75	1500	IMO II	MP-H-100-4	225010351400	1450
CCFJ120W	120	150	WP6CD152E200	138	6	105*130	6.75	1500	IMO II	MP-H-120-4	225010351400	1450
CCFJ150W	150	188	WP10CD200E200	182	6	126*130	9.726	1500	IMO II	MP-H-150-4	251410821572	2180
CCFJ180W	180	225	WP10CD238E200	216	6	126*130	9.726	1500	IMO II	MP-H-180-4	254210821572	2260
CCFJ200W	200	250	WP10CD264E200	240	6	126*130	9.726	1500	IMO II	MP-H-200-4	261510821572	2430
CCFJ250W	250	313	WP12CD317E200	288	6	126*155	11.596	1500	IMO II	MP-H-250-4	267010821630	2690
CCFJ300W	300	375	WP13CD385E200	350	6	127*165	12.54	1500	IMO II	MP-H-300-4	275010821532	2880
CCFJ350W	350	438	X6170ZCD390-4	390	6	170*200	27.24	1500	IMO II	MX-H-350-4	340012301900	5230
CCFJ400W	400	500	X6170ZCD440-4	440	6	170*200	27.24	1500	IMO II	MX-H-400-4	347012301900	5280
CCFJ500W	500	625	6M33CD605E200	550	6	150*185	19.6	1500	IMO II	MX-H-500-4	316013851692	4600
CCFJ600W	600	750	12M33CD748E200	680	12	150*185	39.2	1500	IMO II	MX-H-630-4	359615211927	6410
CCFJ800W	800	1000	12M33CD968E200	880	12	150*185	39.2	1500	IMO II	MX-H-830-4	389515211927	7060

Benefits & Features

Weichai marine generator characteristics

✔ Fuel economy

Flat fuel consumption change curve for reduced generating costs.

✔ Thoughtful design

Shipshape apprearance and compact design conducive to efficient layout.

✔ Inernational standard compliance

Weichai Marine gensets meet international emission standards and IMO 2 stage requirements.

✔ Low noise, vibration

complex rubber plate shock absorbers for minimal vibration and low noise genset operation.

✔Flat-bottomed oil pan

Marine specialized flat pressure design oil pan.

✔ Enhanced toughness

stiffening ribs to enhance rigidness

✔ Weld-free surface

One-step molding technology delivers a leak-resistant, highly reliable weld-free surface.

✔ Safe, reliable operation

Protective hoods on all engine rotating components; IP23 or IP44 protection grade; and grade H insulation.

✔ Advance controls.

Easy to operate, reliable marine monitoring panel that controls operations and displays vital parameters such as speed, oil speed, oil pressure, water temperature.
