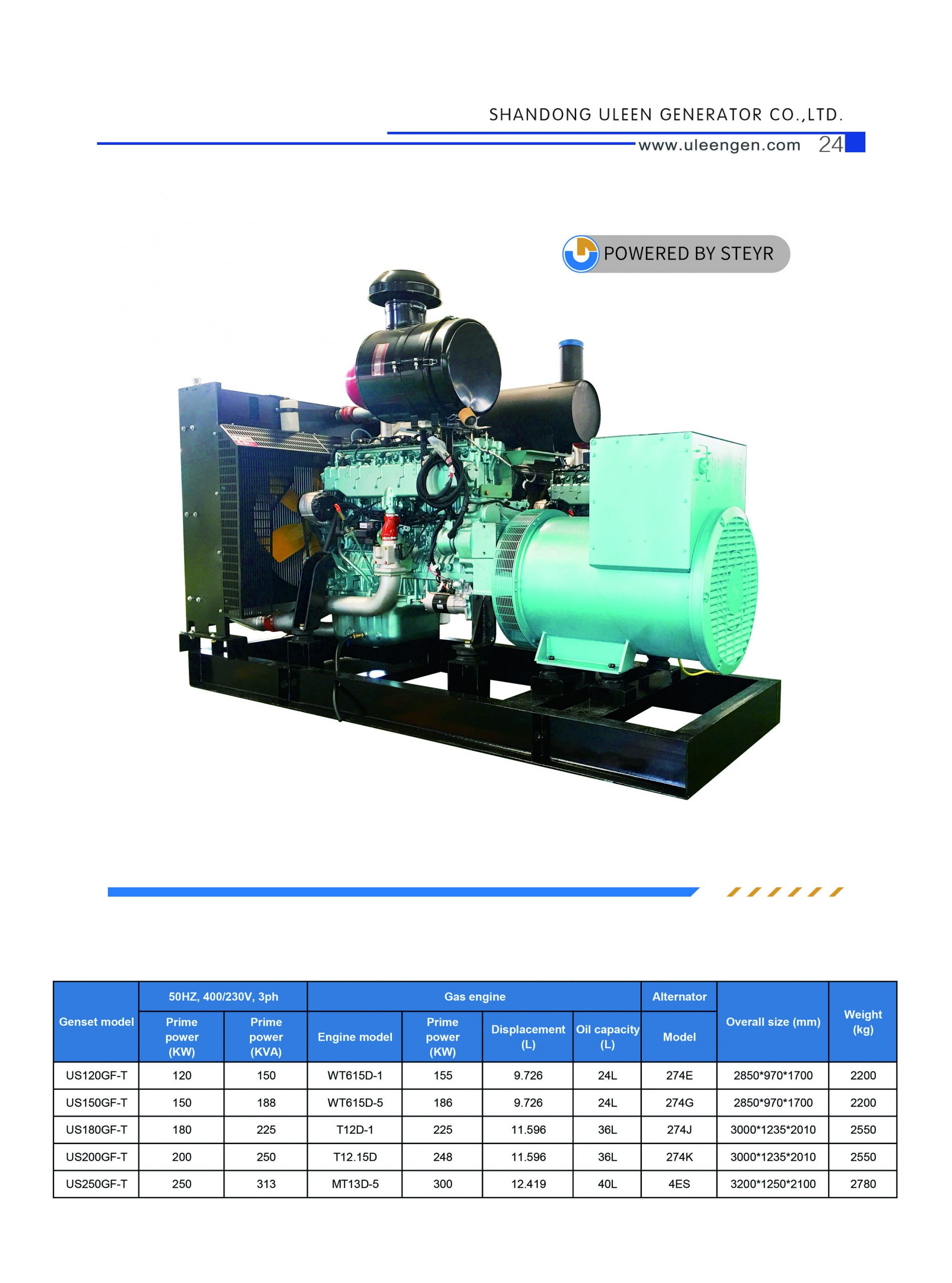

| Genset model | 50HZ, 400/230V, 3ph | Gas engine | Alternator | Overall size(mm) | Weight(kg) | ||||||
| Prime power KW | Prime power KVA | Engine model | Prime power(KW) | No. of cylinder | Bore*Stroke | Displacement(L) | Oil capacity(L) | Model | |||
| US120GF-T | 120 | 150 | WT615D-1 | 155 | 6 | 126*130 | 9.726 | 24L | 274E | 2850*970*1700 | 2200 |
| US150GF-T | 150 | 188 | WT615D-5 | 186 | 6 | 126*130 | 9.726 | 24L | 274G | 2850*970*1700 | 2200 |
| US180GF-T | 180 | 225 | T12D-1 | 225 | 6 | 126*155 | 11.596 | 36L | 274J | 3000*1235*2010 | 2550 |
| US200GF-T | 200 | 250 | T12.15D | 248 | 6 | 126*155 | 11.596 | 36L | 274K | 3000*1235*2010 | 2550 |
| US250GF-T | 250 | 313 | MT13D-5 | 300 | 6 | 126*166 | 12.419 | 40L | 4ES | 3200*1250*2100 | 2780 |
| Cooling System Type | Water Cooling System with Vertical radiator / romote radiator |
| Rated Voltage | 220V, 380 V, 400V, 415V, 440V, 460V, 480V |
| Engine Starting System | DC 24V Electric start |
| Genset start system | Manual start mode. Auto start mode, remote start mode |
| Brand Name | Uleengen |
| Place of Origin | China |
| Speed | 1500/1800rpm |
| Frequency | 50HZ/60HZ |
| Optional configuration | Digital Module, Current Meter, Rainproof Canopy, Soundproof Canopy, Mobile Trailer, ATS, Battery Charger, Remote Control |
| Protection | Overload Protection, Low Oil Shutdown, Automatic Voltage Regulation, Under-Voltage Protection |
| Color | Customized color yellow, white, blue, green… |
| Engine | gas Engine |
| Generator Type | Silent type/open type/ containerized type |
| Certificate | CE/ISO9001 |
★ Professional generator set manufacturer with 14 year experience with wide power range 10kVA to 2500kVA
★ Genuine brand new engines and famous brand alternators with authorized certificates
★ Adopt International quality standards, to meet high quality requirement.
★ Purpose-built for backup power, prime power and emergency power supply
★ Decades years of exporting experience with certificate CE, ISO, COC, CIQ, SONCAP, SABER, FORM E, FORM A, CO, etc
★ Strong technical support and global warranty for the global brands, and our overseas service team with 24/7 service support.
★ We keep some regular engine and alternators in stock. The delivery time can be within 15days.
★ We supply the original spare parts during all the service life
