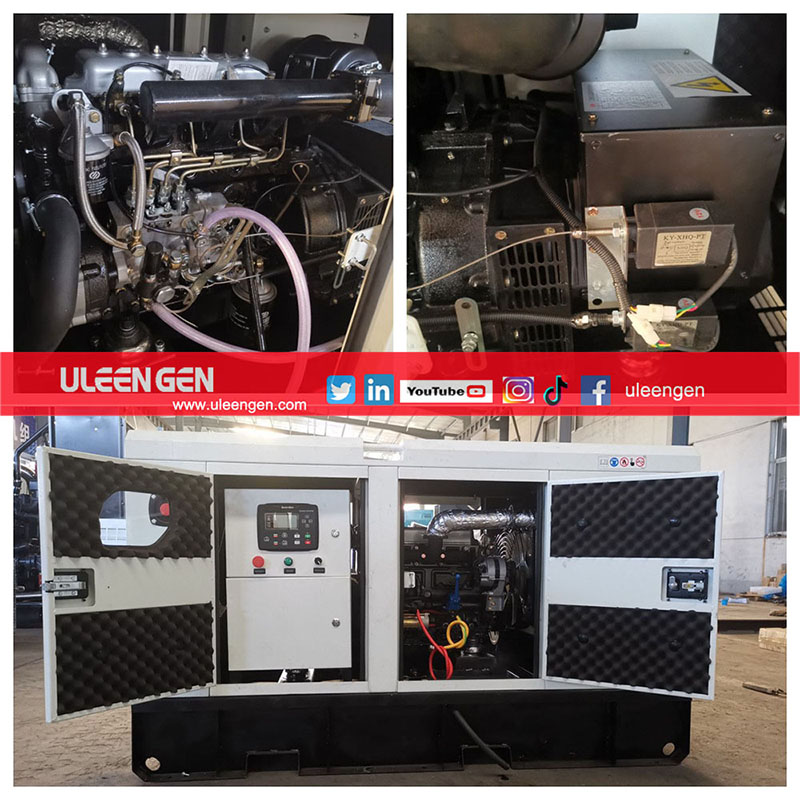

YTO Yangdong Diesel Generator Set 15KVA Delivery YD480D soundproof type
YTO Yangdong diesel generator set 15KVA delivery YD480D

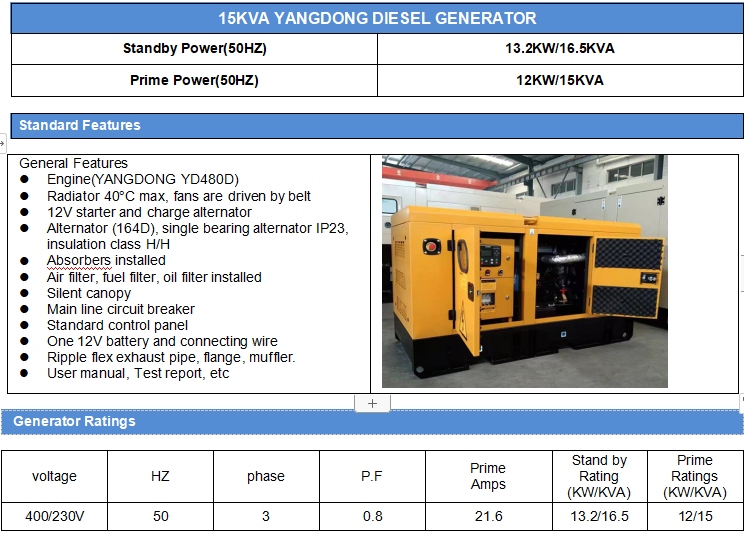

| 15KVA YANGDONG DIESEL GENERATOR UY15GFS | |
| Standby Power(50HZ) | 13.2KW/16.5KVA |
| Prime Power(50HZ) | 12KW/15KVA |
| Generator Ratings |
| Voltage | HZ | Phase | P.F | Rated current Amps | Standby Power (KVA) | Prime Power (KVA) |
| 400/230V | 50 | 3 | 0.8 | 21.6 | 16.5 | 15 |
Prime power (PRP): Prime power is available for an unlimited number of annual hours in available load application, in according with GB/T2820-97(EQVLso8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby power Rating (ESP): The standby power rating is application for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

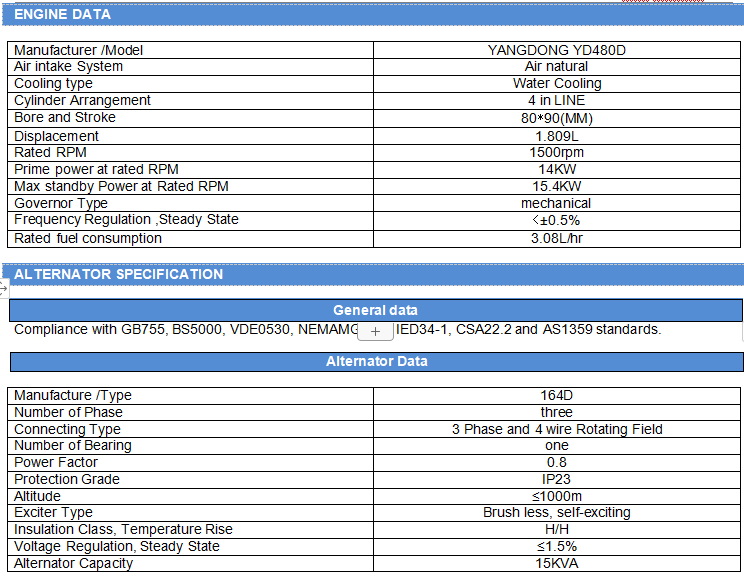

| ENGINE DATA |
| Manufacturer /Model | YANGDONG YD480D |
| Air intake System | Air natural |
| Cooling type | Water Cooling |
| Cylinder Arrangement | 4 in LINE |
| Bore and Stroke | 80*90(MM) |
| Displacement | 1.809L |
| Rated RPM | 1500rpm |
| Prime power at rated RPM | 14KW |
| Max standby Power at Rated RPM | 15.4KW |
| Governor Type | mechanical |
| Frequency Regulation ,Steady State | <±0.5% |
| Rated fuel consumption | 3.08L/hr |
| ALTERNATOR SPECIFICATION |
| General data |
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
| Alternator Data |
| Manufacture /Type | 164D |
| Number of Phase | three |
| Connecting Type | 3 Phase and 4 wire |
| Number of Bearing | one |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brush less, self-exciting |
| Insulation Class, Temperature Rise | H/H |
| Voltage Regulation, Steady State | ≤1.5% |
| Alternator Capacity | 15KVA |
