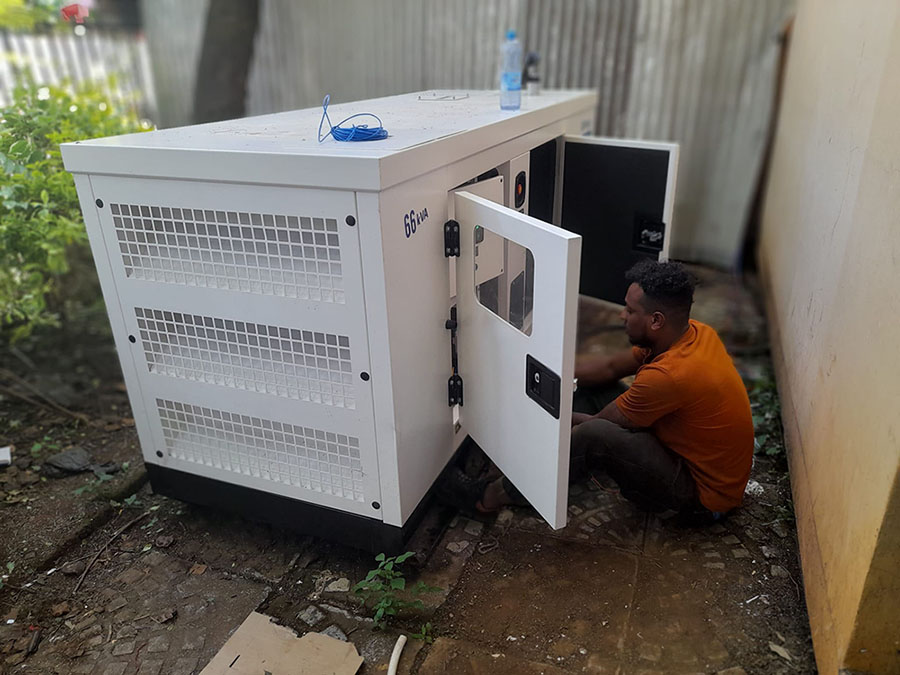

66 KVA Perkins Power Diesel Generator Installed In Africa Country 400V | Perkins 1104A-44TG1
Perkins engine diesel generator is widely deployed in Africa countries to meet diverse power needs:
-
Mission-Critical Backup: In Nigeria, the partnership with UleenGen focuses on providing reliable backup power for essential services like hospitals, banks, and data centres.
-
Supporting Industrial Giants: In the DRC, the appointment of Uleen Generator is a strategic move to support the country’s massive mining and construction sectors, ensuring that heavy industries have access to reliable power and timely support.
-
Enabling Connectivity: In Mali, where a national power grid is largely absent, Perkins-powered generators from UleenGen are the backbone of the telecommunications network. They keep cell towers running during common 10-12 hour power shortages, maintaining vital connections for education, healthcare, and commerce.
-
Flexible Rental and Hybrid Solutions: innovative projects in Kenya demonstrate how Perkins generators can be integrated with solar power and smart controllers in hybrid systems, significantly cutting diesel consumption and operational costs while ensuring uninterrupted power

|

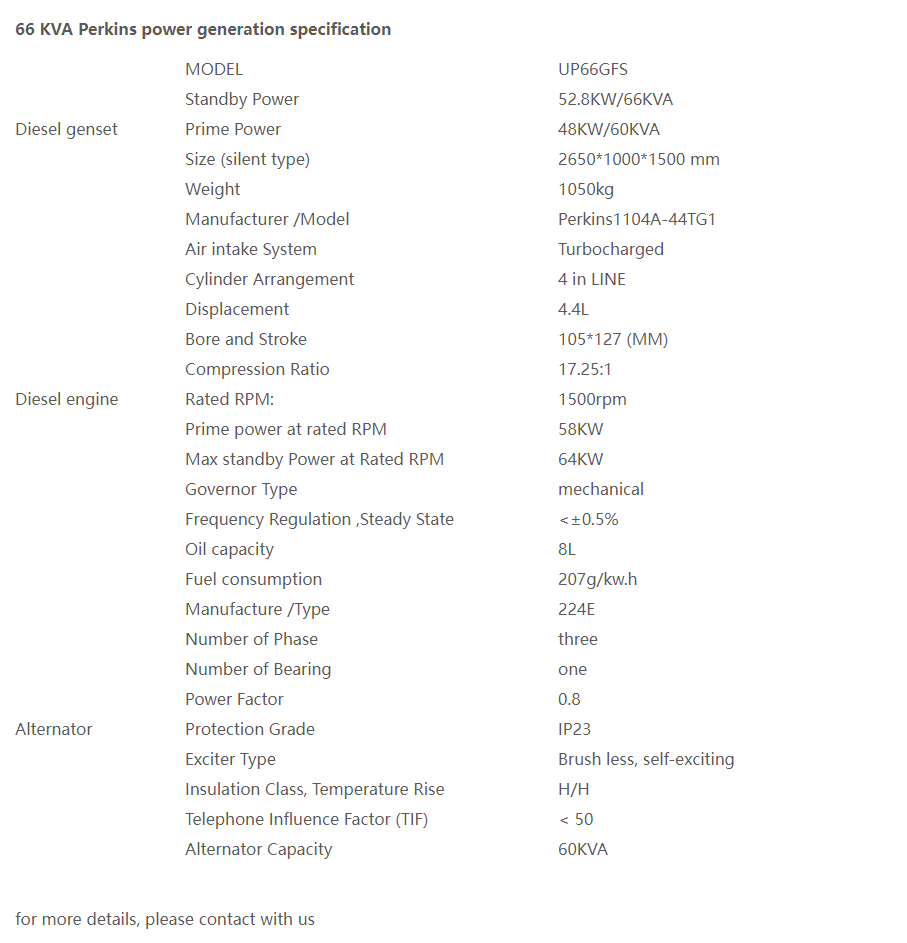

60KVA PERKINS DIESEL GENERATOR UP60GFS |
|
|
Standby Power(50HZ) |
52.8KW/66KVA |
|
Prime Power(50HZ) |
48KW/60KVA |
|
Generator Ratings |
|
Voltage |
HZ |
Phase |
P.F |
Standby/Prime Amps |
Standby Power (KVA) |
Prime Power (KVA) |
|
400/230V |
50 |
3 |
0.8 |
95/87 |
66 |
60 |
|
415/240V |
50 |
3 |
0.8 |
92/83 |
66 |
60 |
|
ENGINE DATA |
|
Manufacturer /Model |
Perkins 1104A-44TG1 |
|
Air intake System |
Turbocharged |
|
Fuel System |
Rotary type pump |
|
Cylinder Arrangement |
4 in LINE |
|
Bore and Stroke |
105*127 (MM) |
|
Displacement |
4.4L |
|
Compression Ratio |
17.25:1 |
|
Rated RPM |
1500rpm |
|
Prime power at rated RPM |
58KW |
|
Max standby Power at Rated RPM |
64KW |
|
Governor Type |
mechanical |
|
Oil capacity |
8L |
|
Coolant capacity |
13L |
|
Rated fuel consumption |
207g/kw.h |
|
ALTERNATOR SPECIFICATION |
|
General data |
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
|
Alternator Data |
|
Manufacture /Type |
STAMFORD technology alternator/224E |
|
Number of Phase |
three |
|
Frequency |
50HZ |
|
Number of Bearing |
one |
|
Power Factor |
0.8 |
|
Protection Grade |
IP22 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brush less, self-exciting |
|
Insulation Class, Temperature Rise |
H/H |
|
Alternator Capacity |
60 KVA |
