Cummins Marine Diesel Generator 50KVA For Yachts Leave For Philippines

Marine generators comply with GB755, BS5000 Part III, VDE0530, NEMA MG1-22, IEC-34, CSA C22-100, AS1359, GBT7060 and IEC60092 standards.

Stamford alternators meet the requirements of various classification societies, including American Bureau of Shipping ABS, Bureau Veritas BV, China Classification Society CCS, Det Norske Veritas DNV, Germanischer Lloyd GL, Korea Register of Shipping KRS, Japan Maritime Association NKK, Italian Register of Shipping RINA, Russian Register of Shipping RMRS, Lloyds Register of Shipping LRS

Advantages of Stamford Marine Generators

Features

1. Permanent magnet generator PMG excitation

2. Advanced automatic voltage regulator control (MX341), providing ±1.0% voltage regulation, it is used on marine generators as a standard configuration. This AVR has built-in protection against internal or external faults caused by persistent over-excitation. Cut off the excitation after a minimum of 5 seconds

3.2/3 winding pitch suppresses excessive neutral current. 2/3 pitch winding can effectively eliminate the third harmonic of the voltage and the multiples of 3 harmonics. It is the best design for uninterruptible power supply equipment and other nonlinear loads. When it is connected in parallel with the power grid, the 2/3 pitch structure suppresses This eliminates the excessive neutral current that sometimes occurs with larger coil pitches.

A fully continuous damping winding reduces oscillations when the generators are operated in parallel. The 2/3 pitch, pole and teeth are carefully matched to suppress the waveform distortion of the output voltage.

4. Single or double fulcrum structure and dynamically balanced rotor with sealed bearings

5. Easy to install and maintain

6. Standard IP23 protection level

7. Manufactured to leading marine standards

Options

1. Winding temperature detection

2. Winding temperature protection thermistor

3. Air filter

4. Anti-radio interference suppressor

5. Parallel operation of droop transformers

6. MX321 with three-phase induction detection provides ±0.5% voltage regulation

7. Loss of excitation protection module

8. Diode failure detection module

9. Manual voltage adjustment potentiometer

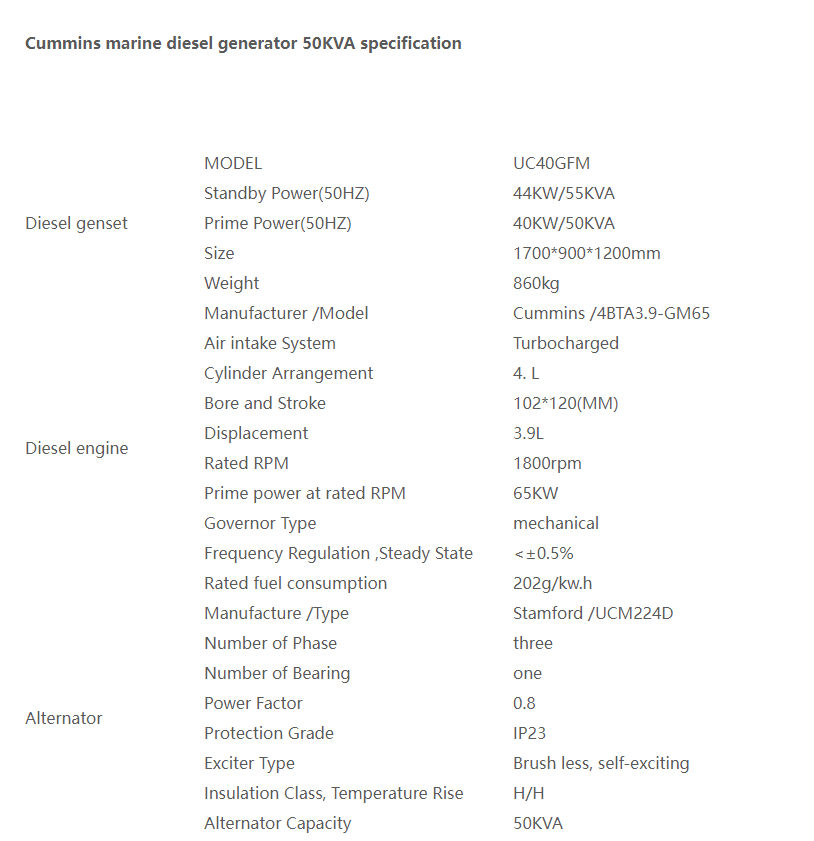

50KVA Cummins marine diesel generator specification
