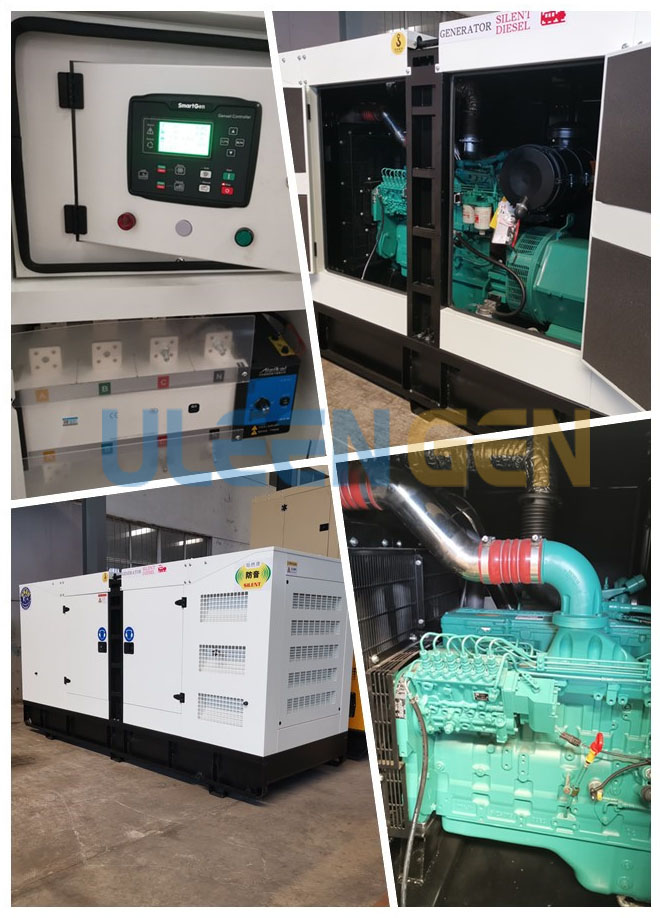

200kw 250kva Cummins Diesel Generators 6LTAA8.9-G2 Will Be Delivered To Africa
Shandong Uleen Generator, with 12 years experience in the generator industry. We have a good sales team, professional technician and after-sales service team. Provide customers with professional consulting services such as generator set load analysis, capacity and system selection, and installation planning at any time. And we can also provide customers with exclusive customized services and power solutions.
Our main Product is the Generator set with power ratings from 9 KVA to 2000 KVA. We deal with customers from independent users such as home owners, stockbreeding, factory, bank, hospital, supermarket lookinig for standby power, to contractors looking for power at site and backup for their buildings, to telecom sector for constant power supply, to Oil & Gas Zone certified units. Uleengen has the capability to produce generators as per the customer’s special needs.
We can design the diesel generator set to be stationary or mobile with trolley or trailer. Soundproofing is provided down to 75 dB @ 7 meter or further for more quiet applications to 65 dB @ 7 meter.
Our generator sets are powered by the most reliable and well-known engine manufactures such as Perkins Cummins Doosan.
| 250KVA CUMMINS DIESEL GENERATOR UC250GFS | |
| Standby Power(50HZ) | 220KW/275KVA |
| Prime Power(50HZ) | 200KW/250KVA |
| Standard Features |
| General Features l Engine(Cummins 6LTAA8.9-G2) l Radiator 50°C max, fans are driven by belt l 24V starter and charge alternator l Alternator (274K) l Base frame with 8hrs fuel tank l Absorber installed l Silent canopy l Circuit breaker l Control panel l Ripple flex exhaust pipe, bellows, flange, muffler. l User manual, Test report, etc |
|
| Generator Ratings |
| Voltage | HZ | Phase | P.F | Prime Amps | Standby Power (KVA) | Prime Power (KVA) |
| 380/220V | 50 | 3 | 0.8 | 380 | 275 | 250 |
| 400/230V | 50 | 3 | 0.8 | 361 | 275 | 250 |
| 415/240V | 50 | 3 | 0.8 | 348 | 275 | 250 |
Prime power (PRP): Prime power is available for an unlimited number of annual hours in available load application, in according with GB/T2820-97(EQVLso8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby power Rating (ESP): The standby power rating is application for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
| Sales Promises |
We provide a full line of brand new and high quality products. Each and every unit is strictly on load test before delivery. Warranty is according to our standard conditions: 12 months or 1500 running hour’s, subject to the earlier one. Service and parts are available from our factory or distribution in your location.
| ENGINE DATA |
| Manufacturer /Model | Cummins 6LTAA8.9-G2 |
| Air intake System | Turbocharged and charge air cooled |
| Fuel system | BYC P7100/GAC |
| Cylinder Arrangement | 6 in LINE |
| Displacement | 8.9L |
| Bore and Stroke | 114*135(MM) |
| Compression Ratio | 16.6:1 |
| Rated RPM | 1500rpm |
| Prime power at rated RPM | 220KW |
| Max standby Power at Rated RPM | 240KW |
| Governor Type | electric |
| Oil capacity | 27.6L |
| Fuel consumption | 205g/kw.h |
| ALTERNATOR SPECIFICATION |
| General data |
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
| Alternator Data |
| Manufacture /Type | Stamford technology 274K |
| Number of Phase | three |
| Connecting Type | 3 Phase and 4 wire |
| Frequency | 50HZ |
| Number of Bearing | one |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Exciter Type | Brush less, self-exciting |
| Insulation Class, Temperature Rise | H/H |
| Alternator Capacity | 250KVA |
| GENERATING SET DATA |
| Voltage Regulation | ³±5% |
| Voltage Regulation, Stead State | £±1% |
| Sudden Voltage Warp (100% Sudden Reduce) | £+25% |
| Sudden Voltage Warp (sudden Increase) | £-20% |
| Voltage Stable Time (100% sudden Reduce) | £6s |
| Voltage Stable Time (Sudden Increase) | £6s |
| Frequency Reduce | £5% adjustable |
| Frequency Regulation, Stead State | £1.5% |
| Frequency waving | £0.8 % |
| Sudden Frequency Warp (100% Sudden Reduce) | £+12% |
| Sudden Frequency Warp (Sudden Increase) | £-10% |
| Frequency Recovery Time (100% sudden Reduce) | £5s |
| Frequency Recovery Time (Sudden Increase) | £5s |
| Auto Start Control Panel and ATS |
|

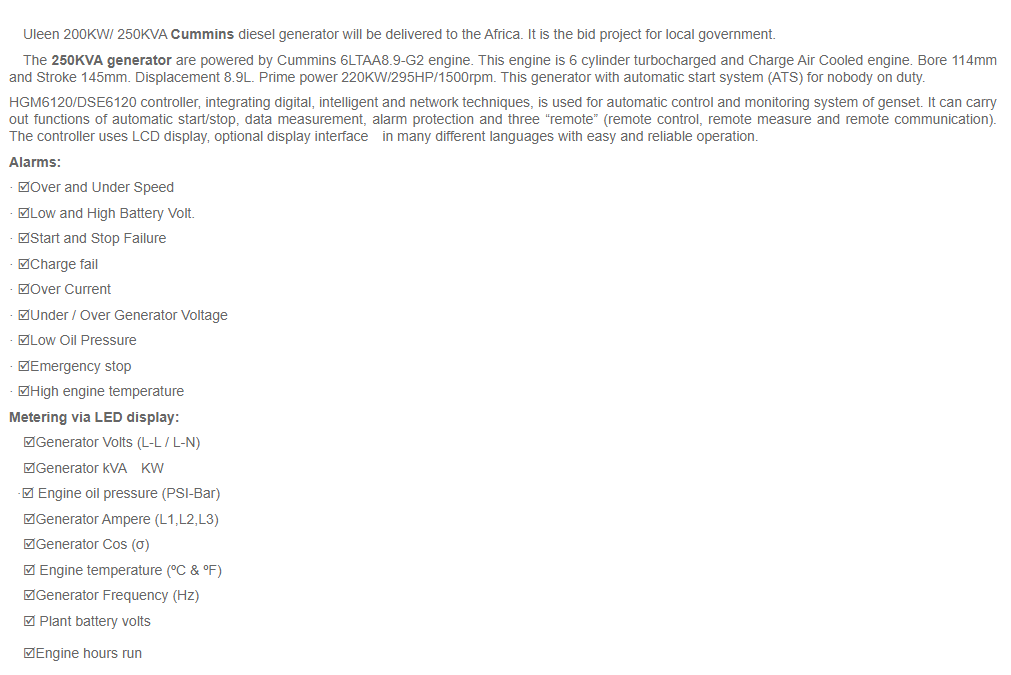

| Automatic Control Panel is the basic configuration for nobody on duty controlling generator when ATS built in. HGM6120 controller, LCD display, optional display interface in eight different languages with easy and reliable operation. used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). Alarms:
Metering via LED display:
|
