Uleengen 1600KVA Cummins diesel generator to Africa past the FAT test

1600KVA Cummins diesel generator will be used as main power for the data center in West Africa

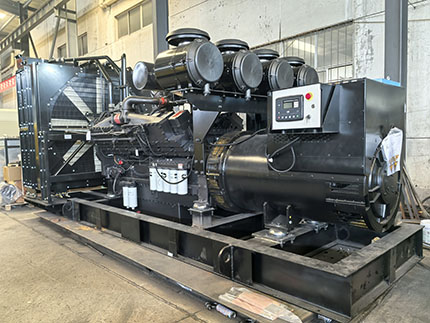

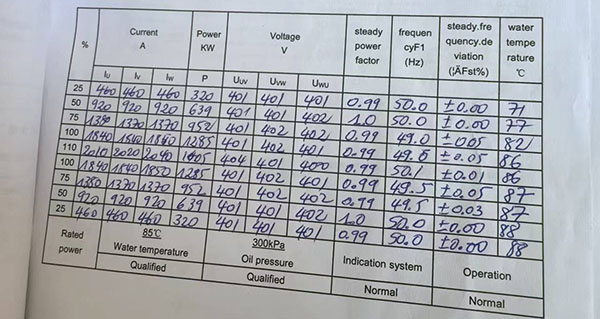

Uleengen Cummins diesel generator 1280kw 1600kva passed the Factory Acceptance Test. And The generator set will be sent to Africa and be used as the main power for data center. Within 10-20 seconds, the diesel generators start, synchronize, and pick up the entire data center load. 10 seconds to accept load is a common standard. Systems use complex switchgear and paralleling systems to combine the output of multiple generators to match the massive load.

An Analysis of 1600kVA Diesel Generator Sets in Data Center Applications
In today’s era of rapidly advancing large-scale AI models and cloud computing, data centers—serving as the physical vessels for computing power—hold a significance comparable to that of power plants in the Industrial Age. Yet, no matter how virtual or ethereal the digital world may seem, it remains inextricably bound by the laws of physics: electricity is the lifeblood of computing power, and reliability is the guarantee that this lifeblood flows without interruption.

Within the power supply architecture of a data center, diesel generator sets serve as the ultimate line of defense. Should both primary utility power feeds fail simultaneously, these units must shoulder the entire load of the server room—and do so within a mere few tens of seconds. Among these units, the 1600kVA (1280kW) power class has emerged as the “gold standard” for the modular deployment of medium-sized data centers and large-scale intelligent computing centers worldwide, thanks to its perfectly balanced capacity and exceptional adaptability.

The widespread preference for the 1600kVA class stems from its remarkably high power density and flexible system integration capabilities. Engine platforms—exemplified by the Cummins KTA50 series—leverage a 16-cylinder, large-displacement 50.3L design to deliver 1600kVA of “Data Center Continuous (DCC)” or “Prime (PRP)” power output within a relatively compact footprint. This translates to a significant advantage within data center campuses, where real estate is at a premium: operators can achieve multi-megawatt-scale backup capacity using fewer parallel-connected generator sets. Consequently, this alleviates the spatial pressure facing intelligent computing centers as the IT load within a single facility evolves from 30 megawatts toward 60—or even 100—megawatts.

Extreme Performance Demands: From “Starting Up” to “Synchronizing”
For data center backup power systems, the performance criteria are far more rigorous than those for standard industrial power generator. Industry experts summarize the core requirements in three key questions: “Can it start up? Can it synchronize with the grid? Can it handle the load?”

The 1600kVA generator set has undergone specific technical optimizations to address these three critical points:

**Sudden Load Acceptance Capability:** Data center IT loads typically exhibit “non-linear” characteristics, and the moment power switches over, the generator set is required to withstand massive current surges. Modern 1600kVA units are now universally equipped with a Permanent Magnet Generator (PMG) excitation system as a standard feature. This ensures that even when non-linear loads cause voltage waveform distortion, the excitation system can still provide a stable magnetic field, thereby supporting the massive inrush currents drawn by server power supplies during startup.

**Rapid Startup and Parallel Operation:** Industry standards mandate that a generator set must reach its rated speed and be ready to accept load within 10 to 20 seconds following a utility power outage. More importantly, in large-scale applications involving multiple parallel-connected units, the generators must possess superior “current-sharing” characteristics. This ensures that when units from different manufacturers or different production batches operate in parallel, they do not engage in “power fighting” (uneven load distribution) or experience oscillations, thereby guaranteeing the reliability of the system’s N+1 redundancy.

Advantages of UleenGen Cummins diesel generators for Data Centers

Proven Reliability: Robust, predictable technology with a long history.

High Power Density: Can deliver massive amounts of power (multiple megawatts) from a relatively compact footprint.

Rapid Load Acceptance: Can handle the large, instantaneous load step when a data center switches from battery to generator.
