-50HZ MTU Diesel generator specification
| Genset Model |
50HZ |
Diesel Engine |
Alternator |
Overall Size(mm) |
Gross Weight(kg) |
| Power(kW) |
Power(kVA) |
Model |
Rated Power(kW) |
No. of Cylinder |
Bore xStroke(mm) |
Displacement(L) |
Rated Fuel Consumption(L/h) |
Model |
| UM1250GF |
1000 |
1250 |
12V4000G23RF |
1205 |
12 |
170*210 |
57.2 |
231 |
LSA50.2 M6 |
6150x2150x2400 |
12000 |
| UM1500GF |
1200 |
1500 |
12V4000G23F |
1420 |
12 |
170*210 |
57.2 |
277 |
LSA50.2 L8 |
6150x2150x2400 |
13000 |
| UM1650GF |
1320 |
1650 |
12V4000G63F |
1570 |
12 |
170*210 |
57.2 |
305 |
LSA50.2 VL10 |
6150x2150x2400 |
13500 |
| UM2000GF |
1600 |
2000 |
16V4000G23F |
1798 |
16 |
170*210 |
76.3 |
370 |
LSA52.3 S6 |
6500x2600x2500 |
17000 |
| UM2500GF |
2000 |
2500 |
20V4000G23F |
2200 |
20 |
170*210 |
95.4 |
462 |
LSA52.3 L12 |
8300x2950x2550 |
23500 |
| UM2750GF |
2200 |
2750 |
20V4000G63F |
2420 |
20 |
170*210 |
95.4 |
508 |
LSA52.3 UL16 |
8300x2950x2550 |
24000 |
-60HZ MTU Diesel Generator specification
| Genset Model |
60HZ |
Diesel Engine |
Alternator |
Overall Size(mm) |
Gross Weight(kg) |
| Power(kW) |
Power(kVA) |
Model |
Rated Power(kW) |
No. of Cylinder |
Bore xStroke(mm) |
Displacement(L) |
Rated Fuel Consumption(L/h) |
Model |
| UM1650GF |
1320 |
1650 |
12V4000G43S |
1520 |
12 |
170*210 |
57.2 |
305 |
LSA50.2 L7 |
6150x2150x2400 |
13000 |
| UM1875GF |
1500 |
1875 |
12V4000G83S |
1736 |
12 |
170*210 |
76.3 |
370 |
LSA50.2 L8 |
6150x2150x2400 |
13500 |
| UM2250GF |
1800 |
2250 |
16V4000G43S |
2020 |
16 |
170*210 |
76.3 |
370 |
LSA52.3 S5 |
6500x2600x2500 |
17000 |
| UM2500GF |
2000 |
2500 |
16V4000G83S |
2280 |
16 |
170*210 |
95.4 |
462 |
LSA52.3 S6 |
6500x2600x2500 |
23500 |
| UM3125GF |
2500 |
3125 |
20V4000G83S |
2740 |
20 |
170*210 |
95.4 |
508 |
LSA52.3 L12 |
8300x2950x2550 |
24000 |
| Description |
| Frequency |
50Hz/60HZ |
| Diesel engine |
MTU |
| Alternator |
Stamford, Marathon, Leroy Somer,Mecc Alte and reliable China alternator |
| Controller |
Smartgen HGM6120, HGM6110, HGM9510
Deepsea DSE7320, DSE7420, DSE6120, DSE6020, DSE8610
ComAp IL4AMF8, IL4AMF9, IL4AMF20, IL4AMF25, IL4MRS16, IG4200
|
| Circuit Breaker |
DELIXI / CHNT / ABB / SCHNEIDER |
| Type |

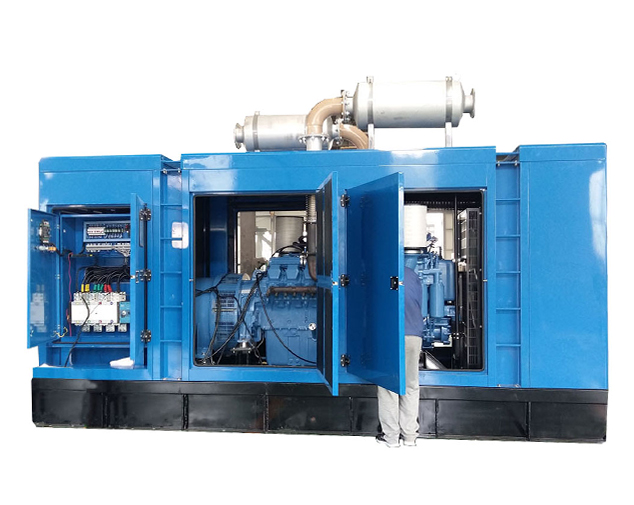

Open / Silent type / Containerized type |
| Fuel Tank |
<550KW, Base Fuel Tank
≥550kw, External Daily Fuel Tank/ Customized Fuel Tank
|
| Standard Supply Scope |
| Engine |
Brand-new engine |
| Alternator |
Brand new brushless alternator,Single bearing, IP22 IP23, H insulation class |
| Base Frame |
Heavy duty steel base frame |
| Radiator |
40℃/50℃ for open type, 50℃for soundproof type |
| Control panel |
Control panel with protection function such as Over and Under Speed, Low/ High Battery Volt. Under / Over Generator Voltage. Low Oil Pressure, High engine temperature, Charge fail, etc. |
| Vibration Damper |
Vibration damper between Engine/Alternator and base frame |
| Silencer |
Industrial silencer with flexible bellow and elbow |
| Filters |
Air filter,Oil filter and Fuel filter |
| Battery |
24V free maintenance batteries |
| Fuel Tank |
Standard 8 hours base fuel tank |
| Tool Kits & Manuals |
Standard tool kits and complete operation/maintenance/manuals |
Optional supply scope
|
| Genset |
Engine |
Alternator |
• Base fuel tank
• External daily fuel tank
• Silent canopy/Trailer
• Fuel level sensor/Coolant level sensor |
• Water Heater
• Lub-oil Heater
• 50℃-55℃ Radiator
• Oil drain pump |
• Temperature sensor for winding
• PMG
• Anti condensation heater |
| Control system |
Breaker |
Spare parts |
• Automatic Transfer Switch
• Remote control and monitor
• Synchronization panel |
• ABB
• Schneider |
• Extra air, oil and fuel filters
• Tool box |
MTU
As a supplier of engines for land, water, and rail propulsion systems, as well as power generation equipment, MTU enjoys a global reputation for its leading technology, highly reliable products, and first-class after-sales service. MTU is renowned for its high output power, high efficiency, compact size, and durability. However, high prices have historically limited MTU’s products to key applications such as warships, tanks, nuclear power plants, transport ships, etc. MTU Yuchai Power Co. Ltd. was founded in February 2017 – a joint venture between MTU and Guangxi Yuchai Machinery Company Ltd. MTU is a wholly owned subsidiary af Rolls-Royce Power Systems, is one of the most famous off-road high-power engine manufacturers, which has more than 100 years of professional knowledge and experience in manufacturing large engines. The quality and performance of MTU products are world-class. Guangxi Yuchai Machinery Company Ltd is a coresubsidiary of Guangxi Yuchai Machinery Group with 67 years of history, which is one of China’s top 500 enterprises, is the largest independent diesel engine manufacturer and one of internal combustion engine production bases with most complete product portfolio in China. It produces 4000 series MTU engine from 1205KW to 2509KW.
