Deutz diesel generator

Deutz generator set with power ranging from 30KVA to 750 KVA
Powered by original Deutz brand new diesel engine.
Corrosion resistant radiator, with belt-driven fan.
Brand new brushless copper wire single bearing alternator.
Options alternator: Stamford, Leroy Somer, Marathon, Mecc Alte, Evotec, Uleengen, etc.
Heavy-duty steel base frame with 8-24 hours operation fuel tank.
Low noise level 68-75DBA at 7 meters.
Vibration damper between engine/alternator and base frame
Main line circuit breaker/Automatic transfer switch.
Optional Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.

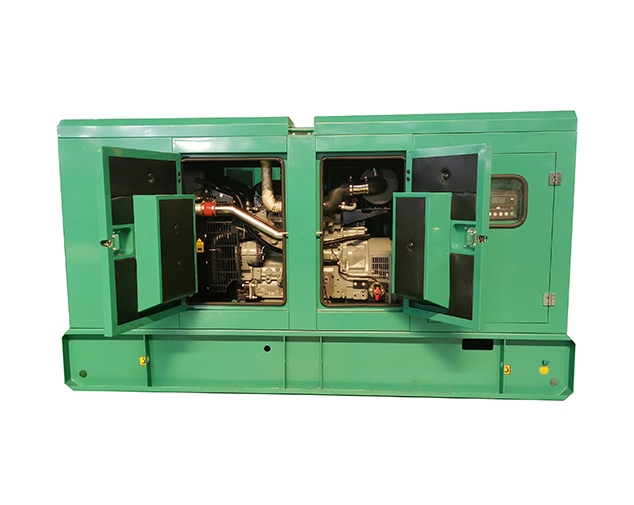

Type: Silent type, Open type, mobile trailer type, containerized type
Voltage: 220V, 380V, 400V, 415V, 440V, 460V, 480V…
Phase: 3 Phase, Single Phase
Full range protect function and alarm shutdown feature

Leave a message View brochure

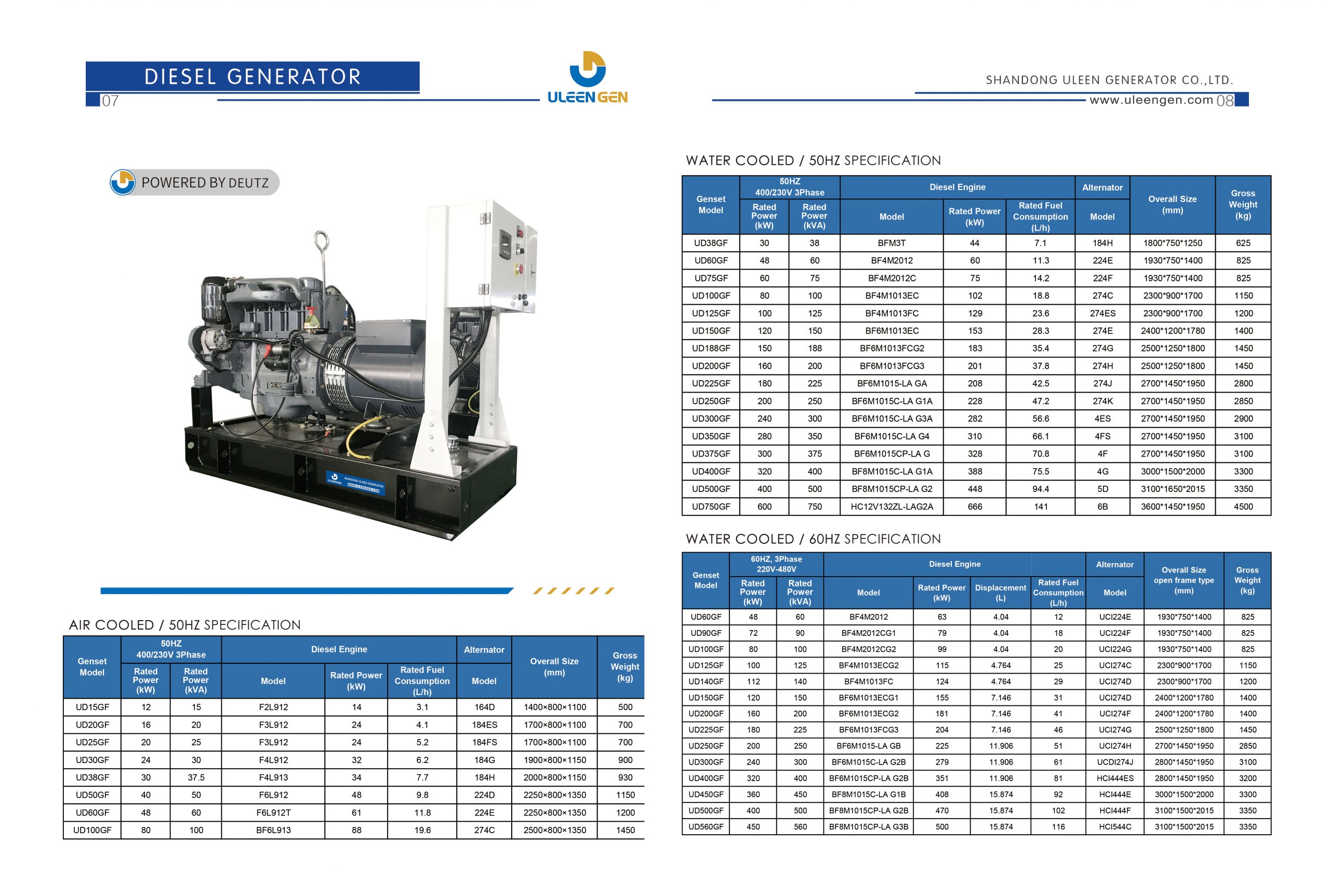

Specifications

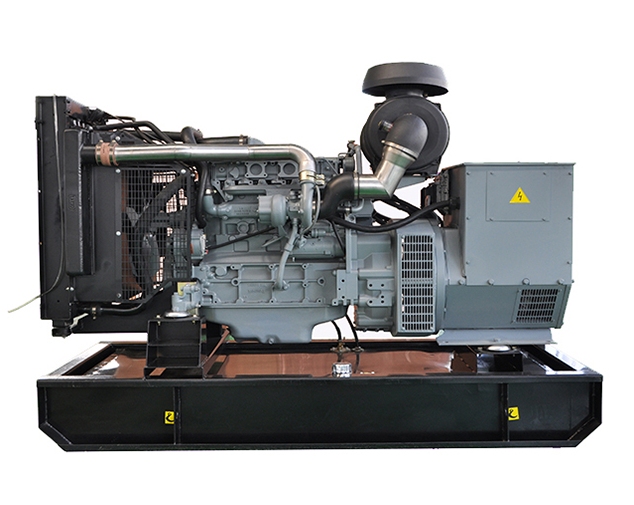

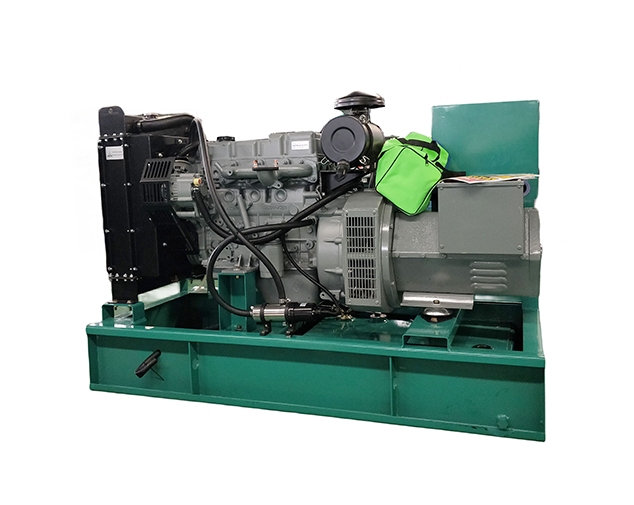

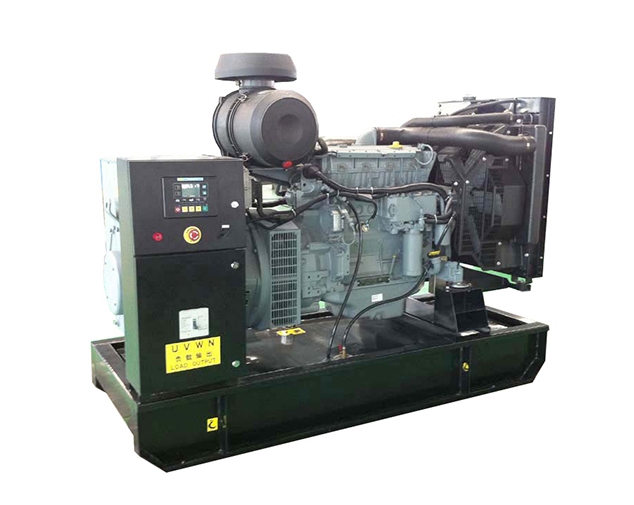

-50HZ Water cooled Deutz diesel generator

Genset Model	50HZ		Diesel Engine						Alternator	Overall Size (mm)	Gross Weight(kg)
Genset Model	Power (kW)	Power (kVA)	Model	Rated Power (kW)	No. of Cylinder	Bore xStroke (mm)	Displacement (L)	Rated Fuel Consumption (L/h)	Model	Overall Size (mm)	Gross Weight(kg)
UD38GF	30	38	BFM3T	44	3	98*105	3.168	7.1	184H	1800x750x1250	625
UD60GF	48	60	BF4M2012	60	4	101*126	4.04	11.3	224E	1930x750x1400	825
UD75GF	60	75	BF4M2012C	75	4	101*126	4.04	14.2	224F	1930x750x1400	825
UD100GF	80	100	BF4M1013EC	102	4	108*130	4.764	18.8	274C	2300x900x1700	1150
UD125GF	100	125	BF4M1013FC	129	4	108*130	4.764	23.6	274ES	2300x900x1700	1200
UD150GF	120	150	BF6M1013EC	153	6	108*130	7.15	28.3	274E	2400x1200x1780	1400
UD188GF	150	188	BF6M1013FCG2	183	6	108*130	7.15	35.4	274G	2500x1250x1800	1450
UD200GF	160	200	BF6M1013FCG3	201	6	108*130	7.15	37.8	274H	2500x1250x1800	1450
UD225GF	180	225	BF6M1015-LA GA	208	6.V	132*145	11.906	42.5	274J	2700x1450x1950	2800
UD250GF	200	250	BF6M1015C-LA G1A	228	6.V	132*145	11.906	47.2	274K	2700x1450x1950	2850
UD300GF	240	300	BF6M1015C-LA G3A	282	6.V	132*145	11.906	56.6	4ES	2700x1450x1950	2900
UD350GF	280	350	BF6M1015C-LA G4	310	6.V	132*145	11.906	66.1	4FS	2700x1450x1950	3100
UD375GF	300	375	BF6M1015CP-LA G	328	6.V	132*145	11.906	70.8	4F	2700x1450x1950	3100
UD400GF	320	400	BF8M1015C-LA G1A	388	8.V	132*145	15.874	75.5	4G	3000x1500x2000	3300
UD450GF	360	450	BF8M1015C-LA G2	403	8.V	132*145	15.874	84.9	5C	3100x1650x2015	3350
UD500GF	400	500	BF8M1015CP-LA G2	448	8.V	132*145	15.874	94.4	5D	3100x1650x2015	3350
UD562GF	450	562	BF8M1015CP-LA G5	509	8.V	132*145	15.874	106	5ES	3200x1650x2015	3450
UD700GF	560	700	HC12V132ZL-LAG1A	600	12.V	132*145	23.812	132	5F	3600x1450x1950	4500
UD750GF	600	750	HC12V132ZL-LAG2A	666	12.V	132*145	23.812	141	6B	3600x1450x1950	4500

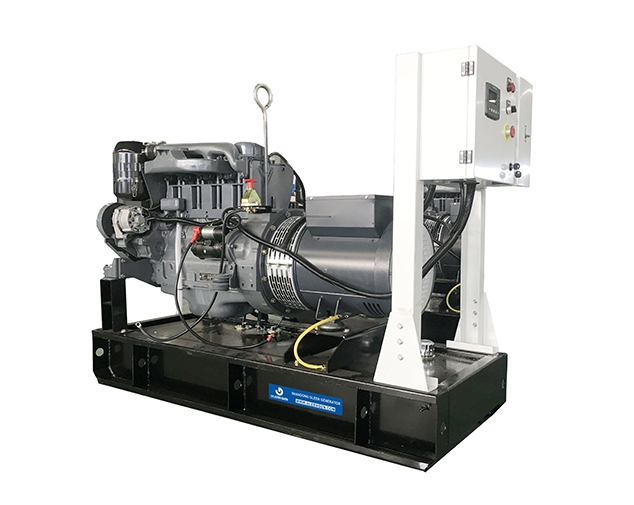

-50HZ Air cooled Deutz diesel generator set

Genset Model	50HZ		Diesel Engine						Alternator	Overall Size(mm)	Gross Weight (kg)
Genset Model	Power(kW)	Power(kVA)	Model	Rated Power (kW)	No. of Cylinder	Bore xStroke(mm)	Displacement (L)	Rated Fuel Consumption (L/h)	Model	Overall Size(mm)	Gross Weight (kg)
UD15GF	12	15	F2L912	14	2	100*120	1.88	3.1	164D	1400×800×1100	500
UD20GF	16	20	F3L912	24	3	100*120	2.828	4.1	184ES	1700×800×1100	700
UD25GF	20	25	F3L912	24	3	100*120	2.828	5.2	184FS	1700×800×1100	700
UD30GF	24	30	F4L912	32	4	100*120	3.77	6.2	184G	1900×800×1150	900
UD38GF	30	37.5	F4L913	34	4	102*120	4.086	7.7	184H	2000×800×1150	930
UD50GF	40	50	F6L912	48	6	100*120	5.655	9.8	224D	2250×800×1350	1150
UD60GF	48	60	F6L912T	61	6	100*120	5.655	11.8	224E	2250×800×1350	1200
UD100GF	80	100	BF6L913	88	6	102*125	6.128	19.6	274C	2500×800×1350	1450

– 60HZ water cooled Deutz diesel generator set

Genset Model	60HZ		Diesel Engine						Alternator	Overall Size open frame type(mm)	Gross Weight (kg)
Genset Model	Power (kW)	Power (kVA)	Model	Rated Power (kW)	No. of Cylinder	Bore xStroke (mm)	Displacement (L)	Rated Fuel Consumption (L/h)	Model	Overall Size open frame type(mm)	Gross Weight (kg)
UD60GF	48	60	BF4M2012	63	4	101*126	4.04	12	UCI224E	1930x750x1400	825
UD90GF	72	90	BF4M2012CG1	79	4	101*126	4.04	18	UCI224F	1930x750x1400	825
UD100GF	80	100	BF4M2012CG2	99	4	101*126	4.04	20	UCI224G	1930x750x1400	825
UD125GF	100	125	BF4M1013ECG2	115	4	108*130	4.764	25	UCI274C	2300x900x1700	1150
UD140GF	112	140	BF4M1013FC	124	4	108*130	4.764	29	UCI274D	2300x900x1700	1200
UD150GF	120	150	BF6M1013ECG1	155	6	108*130	7.146	31	UCI274D	2400x1200x1780	1400
UD200GF	160	200	BF6M1013ECG2	181	6	108*130	7.146	41	UCI274F	2400x1200x1780	1400
UD225GF	180	225	BF6M1013FCG3	204	6	108*130	7.146	46	UCI274G	2500x1250x1800	1450
UD250GF	200	250	BF6M1015 LA GB	225	6.V	132*145	11.906	51	UCI274H	2700x1450x1950	2850
UD300GF	240	300	BF6M1015C LA G2B	279	6.V	132*145	11.906	61	UCDI274J	2800x1450x1950	3100
UD400GF	320	400	BF6M1015CP LA G2B	351	6.V	132*145	11.906	81	HCI444ES	2800x1450x1950	3200
UD450GF	360	450	BF8M1015C-LA G1B	408	8.V	132*145	15.874	92	HCI444E	3000x1500x2000	3300
UD500GF	400	500	BF8M1015CP-LA G2B	470	8.V	132*145	15.874	102	HCI444F	3100x1500x2015	3350
UD560GF	450	560	BF8M1015CP-LA G3B	500	8.V	132*145	15.874	116	HCI544C	3100x1500x2015	3350

Benefits & Features

Deutz generator set Description
Frequency		50Hz/60HZ
Diesel engine		Deutz
Alternator		Stamford, Marathon, Leroy Somer,Mecc Alte, Siemens and reliable China alternator
Circuit Breaker		3/4 poles DELIXI / CHNT / ABB / SCHNEIDER
Type		Open / Silent type / Trailer type / Containerized type
Advantages		Deutz diesel generator with up to 5% fuel savings with excellent sound insulation canopy with galvanized plate/ cold-rolled sheet customized
Standard Supply Scope
Engine		Brand-new Deutz diesel engine 1500rpm 1800rpm
Alternator		Brand new brushless alternator,Single bearing, IP22 IP23, H insulation class
Base Frame		Heavy duty steel base frame
Radiator		Corrosion resistant radiator, with belt-driven fan
Control panel		Smartgen/Deepsea Control panel with protection function such as Over and Under Speed, Low/ High Battery Volt. Under / Over Generator Voltage. Low Oil Pressure, High engine temperature, Charge fail, etc. AMF panel, Synch panel, etc.
Vibration Damper		Vibration damper between Engine/Alternator and base frame
Silencer		Industrial silencer with flexible bellow and elbows
Filters		Air filter,Oil filter and Fuel filter
Battery		12/24V lead acid batteries
Fuel Tank		Standard 8 hours base fuel tank
Tool Kits & Manuals		Standard tool kits and complete operation/maintenance/manuals

Optional supply scope
Genset	Engine	Alternator
• Base fuel tank • External daily fuel tank • Silent canopy/Trailer • Fuel level sensor/Coolant level sensor	• Water Heater • Lub-oil Heater • 50℃-55℃ Radiator • Oil drain pump	• Temperature sensor for winding • PMG • Anti condensation heater
Control system	Breaker	Spare parts
• Automatic Transfer Switch • Remote control and monitor • Synchronization panel	• ABB • Schneider	• Extra air, oil and fuel filters • Tool box

Deutz (Dalian) Engine Co., Ltd. is located in Dalian, China and it is a subsidiary of German engine manufacturer Deutz AG. and operates as a joint venture between Deutz AG and Chinese partners. The company combines Deutz’s advanced engine technology and expertise with local manufacturing capabilities to produce engines specifically designed for the Chinese market. Deutz engines are known for their high quality, performance, and reliability, and are widely used in various industries and applications. mainly includes water cooled engines BFM3, BF4M, BF6M series.It enjoy great popularity all over the world. There are also air cooled Deutz engines such as F2L912, F3L912, F4L912, F4L913, F6L912, F6L913.

Deutz diesel generator applications


Generators for hotel	Generators for mining and quarry	Generator for outdoor construction	Generator for restaurant	Generator for hospital

Generator for factory	Generator for train station	Generator for resort area	Generator for the shopping mall	Generators for school
