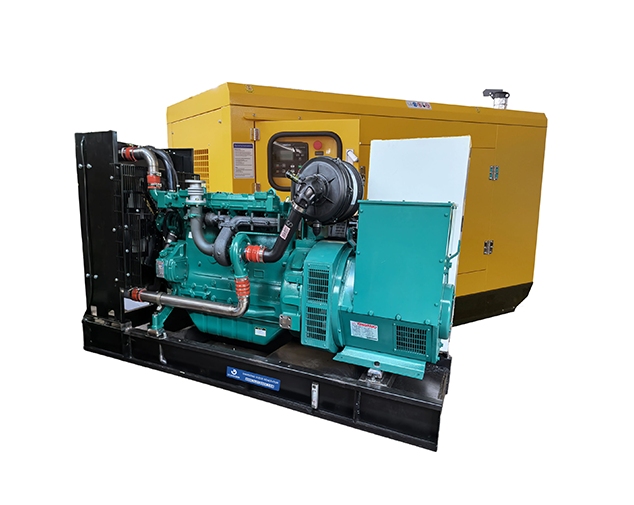

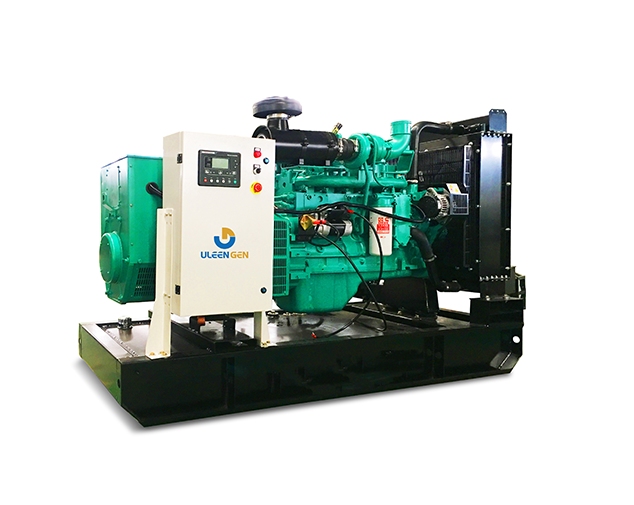

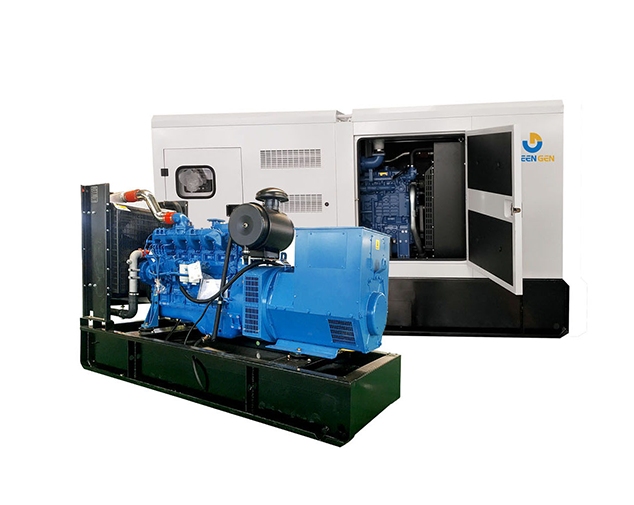

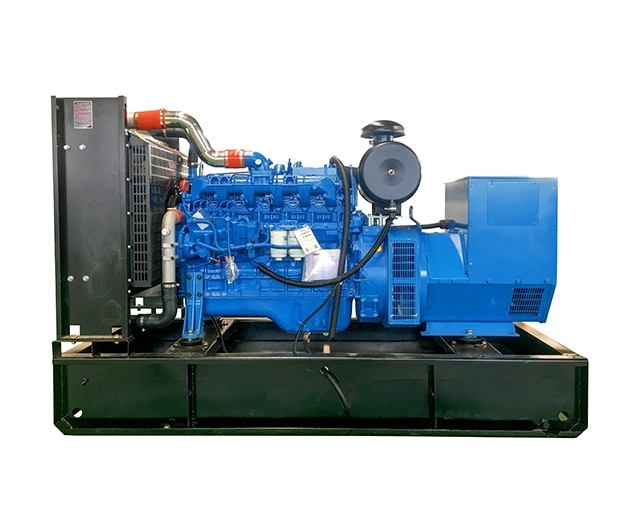

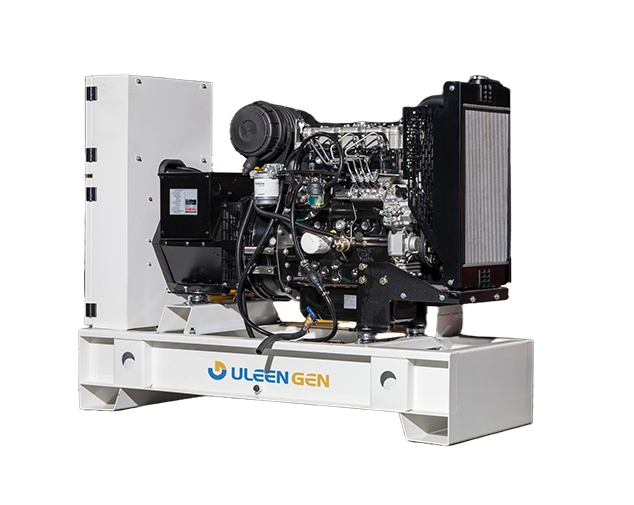

100-200KVA Diesel Generator

100-200kva diesel generator set powered by international brand Cummins/Perkins /Deutz and China brand engine Weichai / Yuchai / SDEC/ FAW
Silent type generator/Open type generator/ mobile trailer type generator is optional
Voltage: 220/127V, 380/220V, 400/230V, 415/240V, 440/254V, 460/266V, 480/277V…
Phase: 3 Phase, Single Phase
Alternator brand: Stamford, Leroy Somer, Mecc alte, Marathon, Engga, Evotec and other reliable alternators.
Customized fuel tank
Control panel with protection function such as low oil pressure, high water temperature, charge fail, etc.
Remote control, automatic start panel, synchronization for optional.
Applications: Building, School, Hospital, Factory, Airport/Station, Poultry farm, Army, Mining, Outdoor construction…

Leave a message

Specifications

50hz 100kva-200kva diesel generator specification

Genset Model	50HZ		Diesel Engine							Alternator	Overall Size(mm)	Gross Weight(kg)
Genset Model	Power (kW)	Power (kVA)	Model	Engine brand	Rated Power(kW)	No. of Cylinder	Bore xStroke(mm)	Displacement (L)	Rated Fuel Consumption (L/h)	Model	Overall Size(mm)	Gross Weight(kg)
UC100GF	80	100	6BT5.9-G2	Cummins	92	6.L	102×120	5.88	18.7	UCI274C	2250×830×1550	1000
UC125GF	100	125	6BTA5.9-G2	Cummins	110	6.L	102×120	5.88	23.4	UCI274ES	2300x850x1400	1000
UC140GF	112	140	6BTAA5.9-G2	Cummins	120	6.L	102×120	5.88	26.1	UCI274ES	2300x850x1400	1200
UC150GF	120	150	6BTAA5.9-G12	Cummins	140	6.L	102×120	5.88	28.1	UCI274F	2300x850x1400	1200
UC160GF	128	160	6BTAA5.9-G12	Cummins	140	6.L	102×120	5.88	29.9	UCI274F	2300x850x1400	1200
UC180GF	144	180	6CTA8.3-G2	Cummins	163	6.L	114×135	8.27	33.6	UCI 274G	2300x850x1400	1400
UC200GF	160	200	6CTAA8.3-G2	Cummins	185	6.L	114×135	8.27	37.4	UCI274H	2500x850x1400	1400
UP100GF	80	100	1104C-44TAG2	Perkins	90	6.L	105×127	4.41	18.7	UCI274C	2240x960x1315	1030
UP125GF	100	125	1106A-70TG1	Perkins	118	6.L	105×135	7.01	23.4	UCI274ES	2240x960x1315	1030
UP150GF	120	150	1106A-70TAG2	Perkins	131	6.L	105×135	7.01	28.1	UCI274F	2240x960x1315	1300
UP180GF	144	180	1106A-70TAG3	Perkins	158	6.L	105×135	7.01	33.7	UCI274G	2345x810x1365	1300
UP200GF	160	200	1106A-70TAG4	Perkins	174	6.L	105×135	7.01	37.4	UCI274H	2240x960x1590	1300
UD100GF	80	100	BF4M1013EC	Deutz	102	4	108*130	4.764	18.8	274C	2300x900x1700	1150
UD125GF	100	125	BF4M1013FC	Deutz	129	4	108*130	4.764	23.6	274ES	2300x900x1700	1200
UD150GF	120	150	BF6M1013EC	Deutz	153	6	108*130	7.15	28.3	274E	2400x1200x1780	1400
UD188GF	150	188	BF6M1013FCG2	Deutz	183	6	108*130	7.15	35.4	274G	2500x1250x1800	1450
UD200GF	160	200	BF6M1013FCG3	Deutz	201	6	108*130	7.15	37.8	274H	2500x1250x1800	1450
UW100GF	80	100	WP4.1D100E200	Deutz	90	4.L	105×118	4.09	18.7	UCI274C	2000x820x1400	1000
UW125GF	100	125	WP6D132E200	Weichai	120	6.L	105×130	6.75	23.4	UCI274ES	2550x950x1500	1300
UW150GF	120	150	WP6D152E200	Weichai	138	6.L	105×130	6.75	28.1	UCI274E	2550x950x1500	1300
UW200GF	160	200	WP10D200E200	Weichai	182	6.L	126×130	9.726	37.4	UCI274H	2800x1000x1500	1800
UY100GF	80	100	YC4A140L-D20	Yuchai	95	4.L	108×132	4.84	18.7	274C	2250x800x1300	1250
UY125GF	100	125	YC4A180L-D20	Yuchai	120	4.L	108×132	4.84	23.3	274DD	2300x800x1300	1500
UY150GF	120	150	YC6B205L-D20	Yuchai	138	6.L	108×125	6.87	28	274E	2300x830x1300	1600
UY188GF	150	188	YC6A245L-D21	Yuchai	165	6.L	108×132	7.25	35	274G	2400x970x1500	2100
UY200GF	160	200	YC6A275-D30	Yuchai	185	6.L	108×132	7.25	37	274H	2400x970x1500	2140

-60hz 100kva-200kva diesel generator specification

Genset Model	60HZ		Diesel Engine							Alternator	Overall Size(mm)	Gross Weight(kg)
Genset Model	Power (kW)	Power (kVA)	Model	Engine brand	Rated Power(kW)	No. of Cylinder	Bore xStroke(mm)	Displacement (L)	Rated Fuel Consumption (L/h)	Model	Overall Size(mm)	Gross Weight(kg)
UC25GF	20	25	4B3.9-G11	Cummins	23	4	102*120	3.9	4.7	S0L2-M1	1800x700x1200	800
UC30GF	24	30	4B3.9-G2	Cummins	30	4	102*120	3.9	6.5	S0L2-P1	1800x700x1200	800
UC40GF	32	40	4BT3.9-G2	Cummins	40	4	102*120	3.9	9.3	S0L2-P1	1800x700x1200	810
UC60GF	48	60	4BTA3.9-G2	Cummins	60	4	102*120	3.9	11.2	S1L2-Y1	1900x950x1550	970
UC75GF	60	75	4BTA3.9-G11	Cummins	80	4	102*120	3.9	14.0	UCI224E	1900x950x1550	970
UC100GF	80	100	6BT5.9-G2	Cummins	100	6	102*120	5.9	18.7	UCI224G	2350x950x1600	1250
UC125GF	100	125	6BT5.9-G2	Cummins	115	6	102*120	5.9	23	UCI274C	2350x950x1600	1250
UC135GF	108	135	6BTA5.9-G2	Cummins	120	6	102*120	5.9	24	UCI274D	2350x950x1600	1300
UC150GF	120	150	6BTAA5.9-G2	Cummins	132	6	102*120	5.9	31	UCI274E	2350x950x1600	1380
UC188GF	150	188	6CTA8.3-G2	Cummins	170	6	114*135	8.3	37	UCI274F	2400x920x1650	1610
UP110GF	88	110	1104C-44TAG2	Perkins	102	4	105*127	4.4	20.6	UCI274C	2000x820x1350	880
UP125GF	100	125	1104D-E44TAG2	Perkins	104	4	105*127	4.4	23.4	UCI274D	2000x820x1350	1000
UP150GF	120	150	1106A-70TG1	Perkins	134	6	105*135	7.01	28.1	UCI274E	2300x810x1360	1200
UP180GF	144	180	1106A-70TAG3	Perkins	173	6	105*135	7.01	33.7	UCI274F	2400x810x1360	1200
UP200GF	160	200	1106A-70TAG3	Perkins	173	6	105*135	7.01	37.4	UCI274G	2400x810x1360	1200
UD100GF	80	100	BF4M2012CG2	Deutz	99	4	101*126	4.04	20	UCI224G	1930x750x1400	825
UD125GF	100	125	BF4M1013ECG2	Deutz	115	4	108*130	4.764	25	UCI274C	2300x900x1700	1150
UD140GF	112	140	BF4M1013FC	Deutz	124	4	108*130	4.764	29	UCI274D	2300x900x1700	1200
UD150GF	120	150	BF6M1013ECG1	Deutz	155	6	108*130	7.146	31	UCI274D	2400x1200x1780	1400
UD200GF	160	200	BF6M1013ECG2	Deutz	181	6	108*130	7.146	41	UCI274F	2400x1200x1780	1400
UW112GF	90	112	WP4.1D120E201	Weichai	105	4	105*118	4.09	21	274C	2000x850x1450	1000
UW125GF	100	125	WP6D132E201	Weichai	120	6	105*130	6.75	23	274D	2500x950x1500	1650
UW150GF	120	150	WP6D158E201	Weichai	144	6	105*130	6.75	28	274ES	2500x950x1500	1650
UW188GF	150	188	WP10D200E201	Weichai	182	6	126*130	9.726	35	274F	2800x1000x1500	1800
UY100GF	80	100	YC6B130Z-D20	Yuchai	88	6	108*125	6.871	18.7	224G	2300x830x1300	1600
UY125GF	100	125	YC6B160Z-D20	Yuchai	107	6	108*125	6.871	23	274D	2300x830x1300	1600
UY150GF	120	150	YC6B210L-D20	Yuchai	140	6	108*125	6.871	28	274ES	2300x830x1300	1600
UY180GF	144	180	YC6A245L-D20	Yuchai	165	6	108*132	7.255	34	274F	2400x970x1500	2100

Benefits & Features

100-200kva silent diesel generator feature

✅Our 100-200kva generator silent canopy with standard 1.5-2mm steel plate and powder coating. The customized canopy is made by galvanized sheet (anti-rust) or stainless steel and it’s powder coated for the generators installed near the sea area with high humidity. and our alternator with thick epoxy coating. for the details, please consult with our team.

✅designed with upper lifthole and forklift hole(easy to move)

✅Standard fuel tank capacity is 8 hours base fuel tank, the fuel tank capacity could be customized as cilents’ requirements as well.

✅the most popular Color is white, yellow, green, blue. the color is optional

✅Logo can be customized

✅Canopy could be customized, the color, the thickness, the materials, etc.

✅Large residential muffler for silent operation.

✅Black-finish stainless steel locks and hinges for maximum weather protection.

✅Control panel viewing window including security access doors.

✅Large access doors for easy maintenance,operation and repairs.

✅Emergency stop push button mounted on enclosure exterior

✅oil drain pump

Automatic Control Panel

HGM6120 controller, LCD display, optional display interface in eight different languages with easy and reliable operation. used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication).
