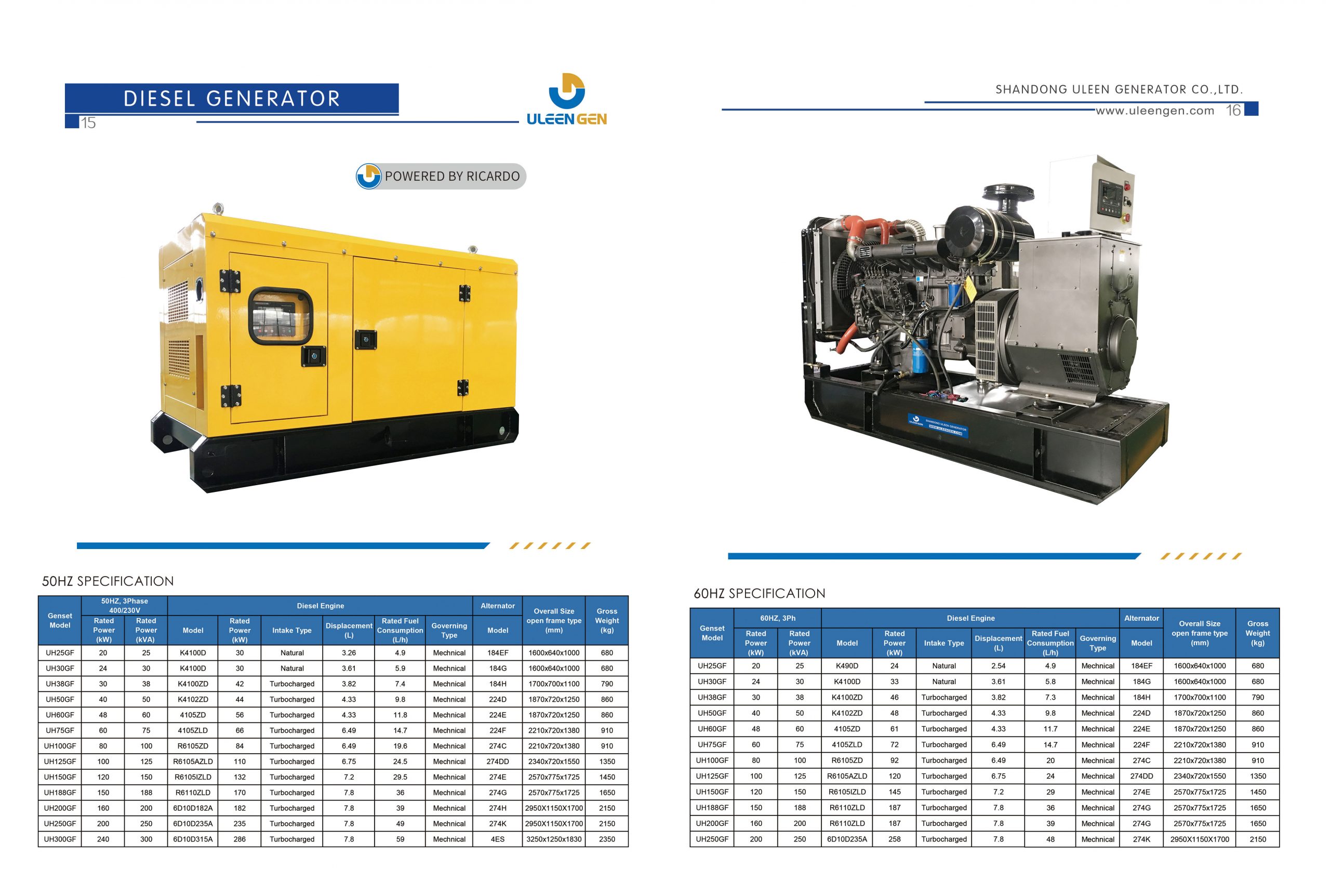

-50hz Ricardo diesel generator specification
| Genset Model |
50HZ |
Diesel Engine |
Alternator |
Overall Size open frame type(mm) |
Gross Weight(kg) |
| Power(kW) |
Power(kVA) |
Model |
Rated Power(kW) |
No. of Cylinder |
Bore xStroke(mm) |
Displacement(L) |
Rated Fuel Consumption(L/h) |
Model |
| UH25GF |
20 |
25 |
K4100D |
30 |
4.L |
100×115 |
3.26 |
4.9 |
184EF |
1600x640x1000 |
680 |
| UH30GF |
24 |
30 |
K4100D |
30 |
4.L |
100×115 |
3.61 |
5.9 |
184G |
1600x640x1000 |
680 |
| UH38GF |
30 |
38 |
K4100ZD |
42 |
4.L |
100×115 |
3.82 |
7.4 |
184H |
1700x700x1100 |
790 |
| UH50GF |
40 |
50 |
K4102ZD |
44 |
4.L |
102×115 |
4.33 |
9.8 |
224D |
1870x720x1250 |
860 |
| UH60GF |
48 |
60 |
4105ZD |
56 |
4.L |
105×125 |
4.33 |
11.8 |
224E |
1870x720x1250 |
860 |
| UH75GF |
60 |
75 |
4105ZLD |
66 |
4.L |
105×125 |
6.49 |
14.7 |
224F |
2210x720x1380 |
910 |
| UH100GF |
80 |
100 |
R6105ZD |
84 |
6.L |
105×125 |
6.49 |
19.6 |
274C |
2210x720x1380 |
910 |
| UH125GF |
100 |
125 |
R6105AZLD |
110 |
6.L |
105×130 |
6.75 |
24.5 |
274DD |
2340x720x1550 |
1350 |
| UH150GF |
120 |
150 |
R6105IZLD |
132 |
6.L |
105×135 |
7.2 |
29.5 |
274E |
2570x775x1725 |
1450 |
| UH188GF |
150 |
188 |
R6110ZLD |
170 |
6.L |
110×135 |
7.8 |
36 |
274G |
2570x775x1725 |
1650 |
| UH200GF |
160 |
200 |
6D10D182A |
182 |
6.L |
126×130 |
7.8 |
39 |
274H |
2950x1150x1700 |
2150 |
| UH250GF |
200 |
250 |
6D10D235A |
235 |
6.L |
126×130 |
7.8 |
49 |
274K |
2950x1150x1700 |
2150 |
| UH300GF |
240 |
300 |
6D10D315A |
286 |
6.L |
126×130 |
7.8 |
59 |
4ES |
3250x1250x1830 |
2350 |
-60hz Ricardo diesel generator specification
| Genset Model |
60HZ |
Diesel Engine |
Alternator |
Overall Size open frame type(mm) |
Gross Weight(kg) |
| Power(kW) |
Power(kVA) |
Model |
Rated Power(kW) |
No. of Cylinder |
Bore xStroke(mm) |
Displacement(L) |
Rated Fuel Consumption(L/h) |
Model |
| UH25GF |
20 |
25 |
K490D |
24 |
4.L |
90×100 |
2.54 |
4.9 |
184EF |
1600x640x1000 |
680 |
| UH30GF |
24 |
30 |
K4100D |
33 |
4.L |
100×115 |
3.61 |
5.8 |
184G |
1600x640x1000 |
680 |
| UH38GF |
30 |
38 |
K4100ZD |
46 |
4.L |
100×115 |
3.82 |
7.3 |
184H |
1700x700x1100 |
790 |
| UH50GF |
40 |
50 |
K4102ZD |
48 |
4.L |
102×115 |
4.33 |
9.8 |
224D |
1870x720x1250 |
860 |
| UH60GF |
48 |
60 |
4105ZD |
61 |
4.L |
105×125 |
4.33 |
11.7 |
224E |
1870x720x1250 |
860 |
| UH75GF |
60 |
75 |
4105ZLD |
72 |
4.L |
105×125 |
6.49 |
14.7 |
224F |
2210x720x1380 |
910 |
| UH100GF |
80 |
100 |
R6105ZD |
92 |
6.L |
105×125 |
6.49 |
20 |
274C |
2210x720x1380 |
910 |
| UH125GF |
100 |
125 |
R6105AZLD |
120 |
6.L |
105×130 |
6.75 |
24 |
274DD |
2340x720x1550 |
1350 |
| UH150GF |
120 |
150 |
R6105IZLD |
145 |
6.L |
105×135 |
7.2 |
29 |
274E |
2570x775x1725 |
1450 |
| UH188GF |
150 |
188 |
R6110ZLD |
187 |
6.L |
110×135 |
7.8 |
36 |
274G |
2570x775x1725 |
1650 |
| UH200GF |
160 |
200 |
R6110ZLD |
187 |
6.L |
110×135 |
7.8 |
39 |
274G |
2570x775x1725 |
1650 |
| UH250GF |
200 |
250 |
6D10D235A |
258 |
6.L |
126×130 |
7.8 |
48 |
274K |
2950X1150X1700 |
2150 |
| Standard Supply Scope |
| Engine |
Brand-new Weifang Ricardo diesel engine |
| Alternator |
Brand new brushless alternator,Single bearing, IP22 IP23, H insulation class |
| Base Frame |
Heavy duty steel base frame |
| Radiator |
40℃/50℃ anti-corrosion vertical radiator |
| Control panel |
digital AMF Control panel with protection function |
| Vibration Damper |
Vibration damper between Engine/Alternator and base frame |
| Silencer |
Industrial silencer with flexible bellow and elbow |
| Filters |
Air filter,Oil filter and Fuel filter |
| Battery |
12/24V free maintenance lead acid batteries |
| Fuel Tank |
Standard 8 hours base fuel tank |
| Tool Kits & Manuals |
Standard tool kits and complete operation/maintenance/manuals |
| Optional supply scope |
| Genset |
Engine |
Alternator |
| Base fuel tank |
Water Heater |
Temperature sensor for winding |
| External daily fuel tank |
Lub-oil Heater |
PMG |
| Silent canopy/Trailer |
50℃-55℃ Radiator |
Anti condensation heater |
| Fuel level sensor/Coolant level sensor |
Oil drain pump |
|
| Control system |
Breaker |
Spare parts |
| Automatic Transfer Switch |
Manual MCCB |
Extra air, oil and fuel filters |
| Remote control and monitor |
ATS |
Tool box |
| Synchronization panel |
|
|

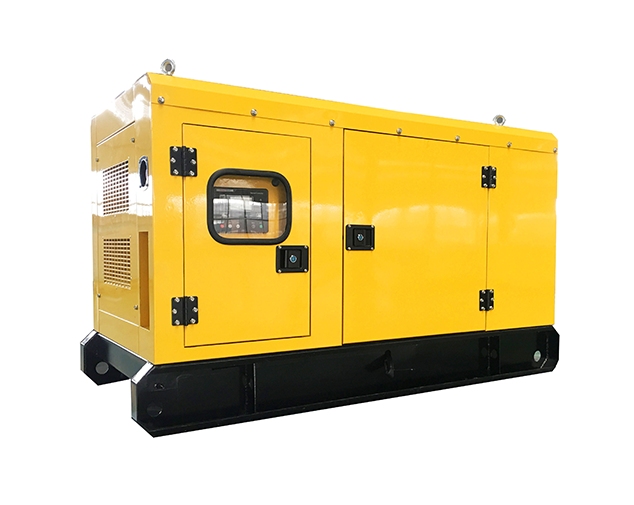

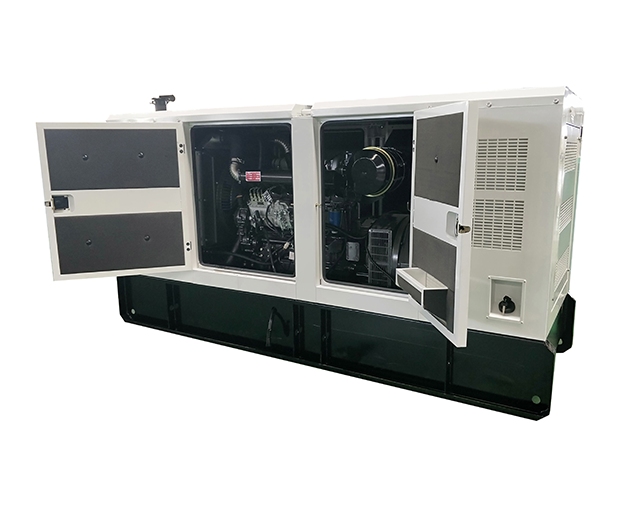

Silent Weifang diesel generator features
✅ High density wave sound-absoring cotton
When sound waves pass through cotton, they are reflected by countless fibers,superimposed on each other, and collide.The sound wave energy is converted into heat energy, so that the intensity of the sound wave is weakened and the sound disappears. our mute sponge thickness 40-50 mm
✅ Soundproof & Weatherproof & rust-resistant enclosure treated with polyester powder coated for outdoor use. Stainless steel locks and hinges
✅ Easy maintenance access with lockable service doors
✅ Large residential muffler for silent operation.
✅ Integrated steel base tank or customized free standing fuel tank.
✅ Control panel viewing window with AMF, and remote monitoring systems including security access doors.
✅ The sufficient air in & out design ensure long-term and stable operation of the generator set.
✅ Emergency stop push button mounted on enclosure exterior
✅ Fuel filling port on the canopy
