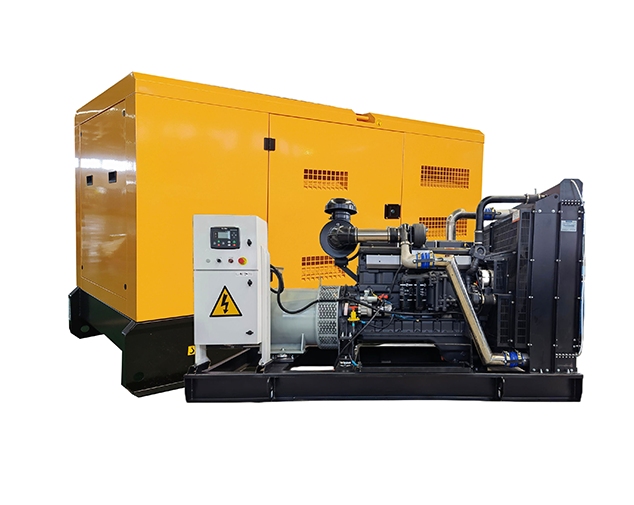

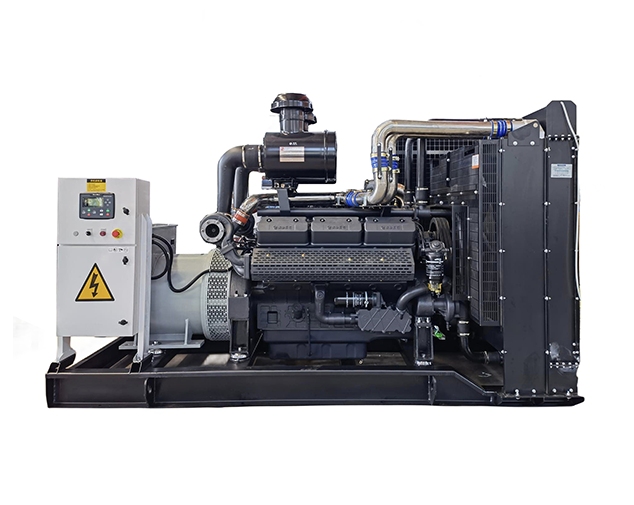

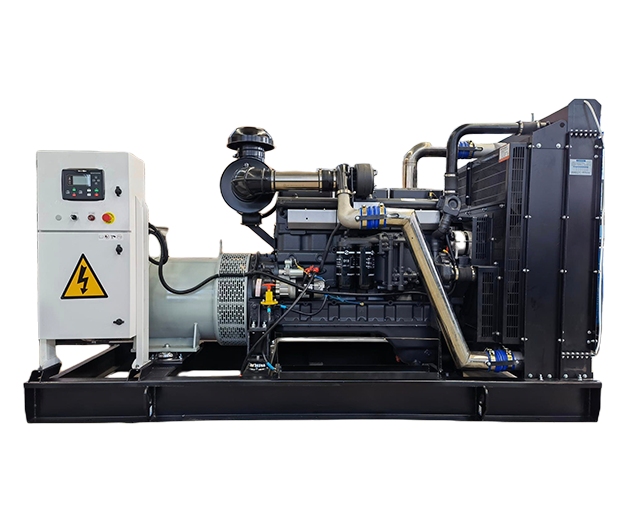

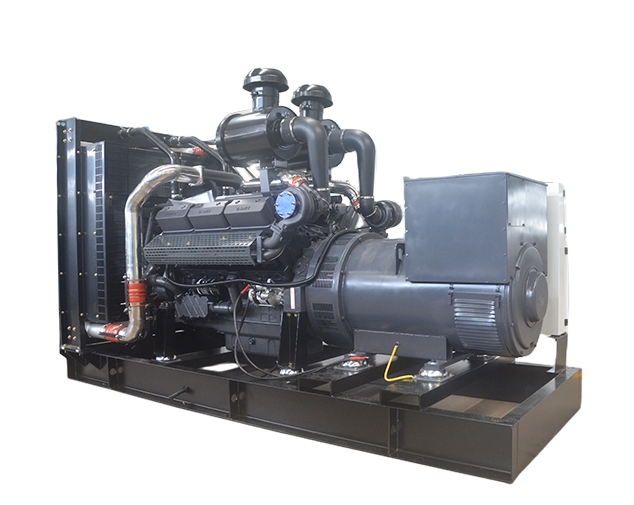

SDEC Diesel Generator

  • SDEC Shanghai diesel generator sets with power ranging from 15KVA to 1875KVA
  • Powered by original SDEC brand new diesel engine.
  • Brand new brushless self excitation alternator.
  • Heavy-duty steel base frame with 8-24 hours operation fuel tank.
  • Vibration damper between engine/alternator and base frame
  • ACB/ATS included
  • Type: Silent type, Open type, mobile trailer type, containerized type
  • Voltage: 220/127V, 380/220V, 400/230V, 415/240V, 440/254V, 460/266V, 480/277V…
  • Phase: 3 Phase, Single Phase
  • Full range protect function and alarm shutdown feature
  • Comply with CE ISO8528 national standard and ISO9001 quality standard.
  • Very generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and inspection of all control and safety shut-down functions;

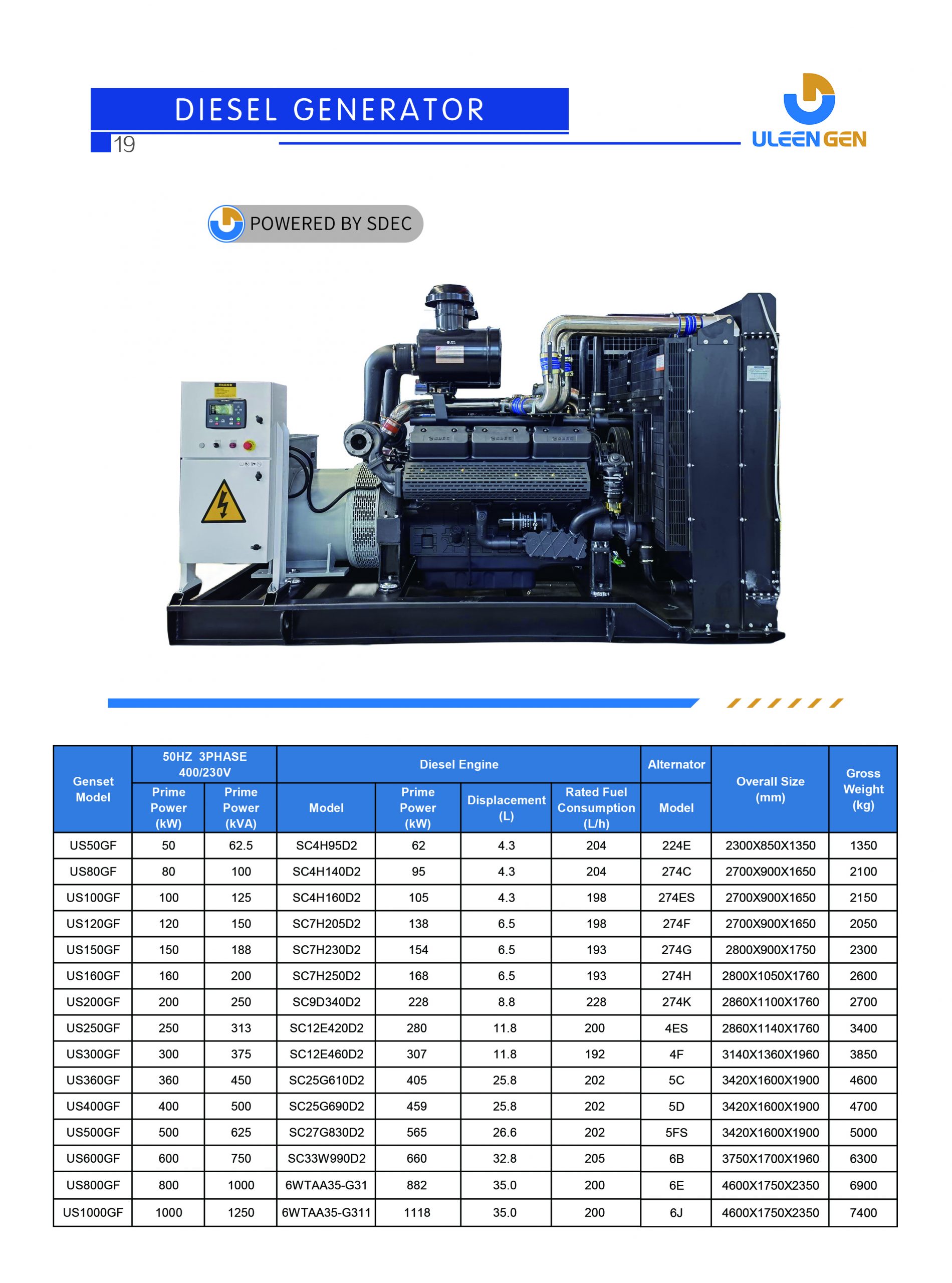

Specifications
Genset Model 50HZ Diesel Engine Alternator Overall Size(mm)

Gross Weight

(kg)

Power

(kW)

Power

(kVA)

Model

Rated Power

(kW)

No. of Cylinder

Bore xStroke

(mm)

Displacement

(L)

Rated Fuel Consumption

(L/h)

Model
US50GF 50 63 SC4H95D2 62 4 105*124 4.3 11.7 224E 2300X850X1350 1350
US80GF 80 100 SC4H140D2 95 4 105*124 4.3 18.7 274C 2700X900X1650 2100
US100GF 100 125 SC4H180D2 120 4 105*124 4.3 23.4 274ES 2700X900X1650 2150
US120GF 120 150 SC7H205D2 138 6 105*124 6.5 28.1 274F 2700X900X1650 2050
US150GF 150 188 SC7H250D2 168 6 105*124 6.5 35 274G 2800X900X1750 2300
US200GF 200 250 SC9D340D2 228 6 114*144 8.8 46 274K 2860X1100X1760 2700
US250GF 250 313 SC12E420D2 280  128*153 11.8  58  4ES 2860X1140X1760 3400
US300GF 300 375 SC12E480D2 323  128*153 11.8  70  4F 3140X1360X1960 3850
US360GF 360 450 SC25G610D2 405  12  135*150 25.8  84  5C 3420X1600X1900 4600
US400GF 400 500 SC25G690D2 459  12  135*150 25.8  93  5D 3420X1600X1900 4700
US500GF 500 625 SC27G830D2 565  12  135*155 26.6  117  5FS 3420X1600X1900 5000
US600GF 600 750 SC33W990D2 660  180*215 32.8  140  6B 3750X1700X1960 6300
US800GF 800 1000 6WTAA35 G31 882  186*215 35.0  186  6E 4300X1750X2350 6900
US1000GF 1000 1250 6WTAA35 G311 1118  186*215 35.0  233  6J 4300X1750X2350 7400
US1200GF 1200 1500 12KTA58 G35 1420  12  170*210 57.2  280  6J 4750X1800X2550 11400
Benefits & Features



Standard supply scope of SDEC diesel generator
Engine Brand-new 1500rpm/1800rpm SDEC diesel engine
Alternator Brand new brushless alternator,Single bearing, IP23, H insulation class
Base Frame Heavy duty steel base frame with fuel level gauge and electronic level sensor
Radiator Anti-corrosion radiator
Vibration Damper Vibration damper between Engine/Alternator and base frame
Silencer Industrial silencer with flexible bellow and elbow
Filters Air filter,Oil filter and Fuel filter
Battery 12/24V batteries
Fuel Tank Average 8 hours base fuel tank
Tool Kits & Manuals Standard tool kits and complete operation/maintenance/manuals
Optional confirguration of SDEC generator sets
1: Automatic Transfer Switch 2: ABB and Schneider Breaker

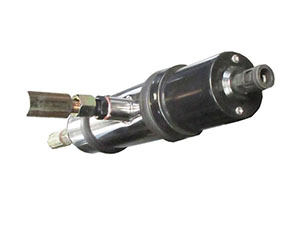

3: Water Heater 4: Lub-oil Heater
5: 50℃-55℃ Radiator 6: Fuel level sensor
7: Low coolant level sensor 8: Extra ail, oil and fuel filters
9:External Daily Fuel Tank 10: Water-Fuel Separator
11: Controller options: DSE6020, DSE7320, DSE8610, IL-NT AMF20, IC-NT SPtM, IC-NT MINT, IG-NT-GC



SDEC diesel generator configuration

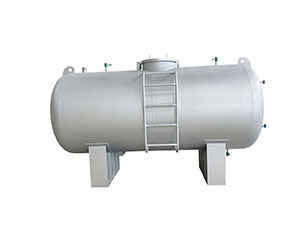

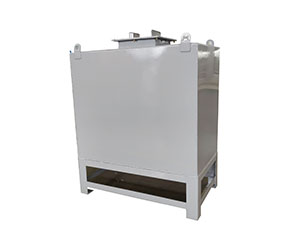

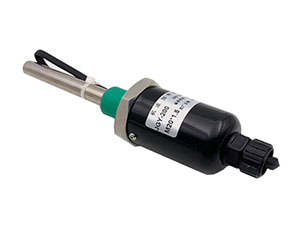

Free standing fuel tank   Customized fuel tank   Coolant heater

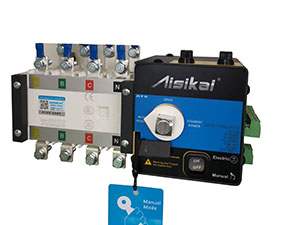

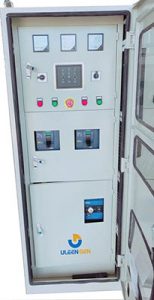

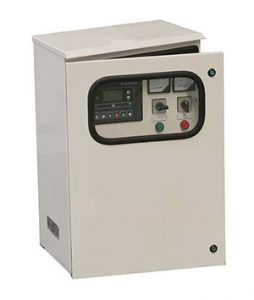

Oil heater   ATS   ATS cabinet

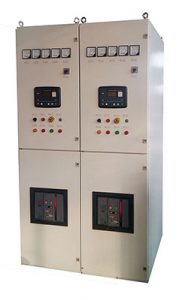

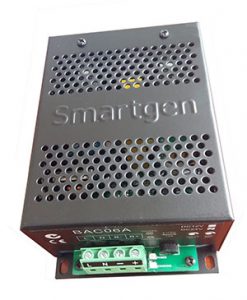

ATS cabinet   Synchronization control cabinet   Battery charger

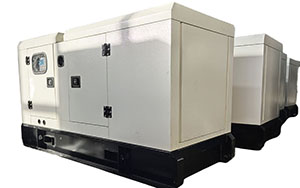

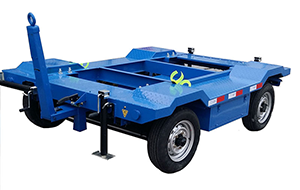

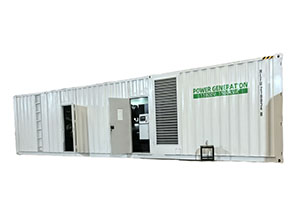

Silent canopy   Trailer   Containerized canopy



SDEC is one of the top three diesel engine manufacturers in China, Shanghai New Power Automotive Technology Co., Ltd. (previously known as Shanghai Diesel Engine Co., Ltd.), was founded in 1947 and is now affiliated with SAIC Motor Corporation Limited (SAIC Motor). In 1993, it was restructured into a state-owned holding company.and it is one of the brands we highly recommend. As a state-owned enterprise with decades of experience in engine manufacturing, SDEC produces engines comparable to Cummins’ QSB, and 8.3 and 8.9 L series models. Their engines are known for their reliable quality, good performance, and competitive pricing.
