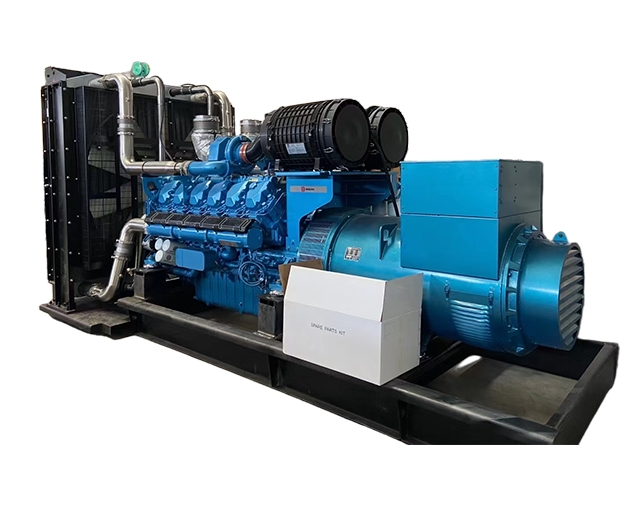

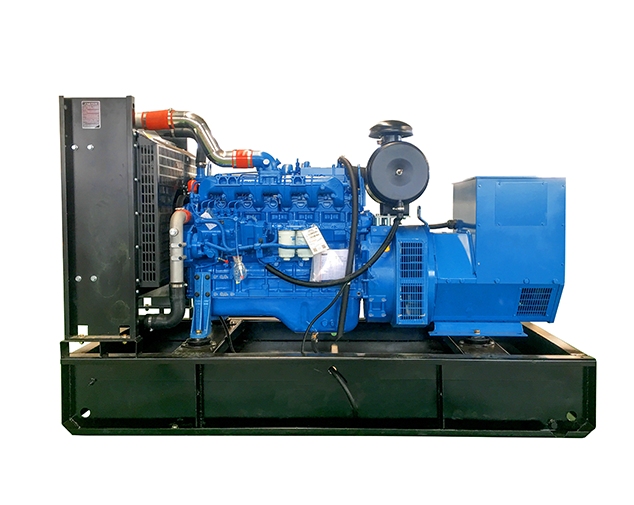

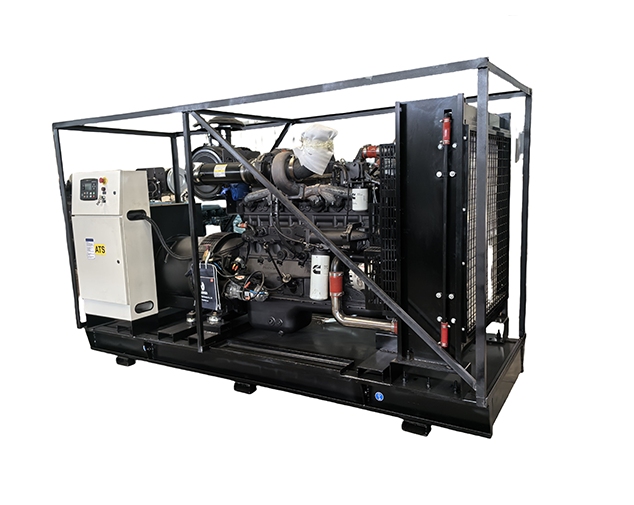

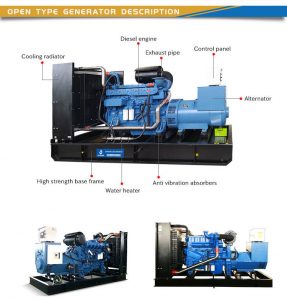

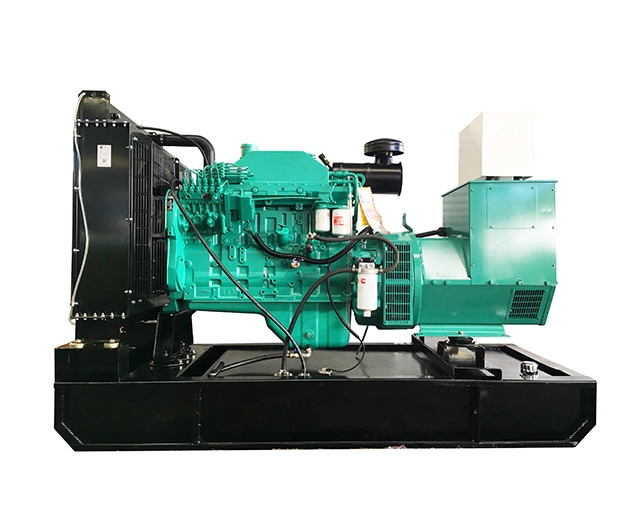

| open frame diesel generator description | |||
| Frequency | 50Hz/60HZ | ||
| Diesel engine | Cummins, Perkins, Doosan, Isuzu, Volvo, Deutz, Weichai, Yuchai, SDEC, Yangdong, FAW, Rircardo | ||
| Alternator | Stamford, Marathon, Leroy Somer,Mecc Alte and reliable China alternator | ||
| Controller |
Smartgen HGM6120, HGM6110, HGM410, HGM420, HGM9510 Deepsea DSE7320, DSE7420, DSE6120, DSE6020, DSE8610 ComAp IL4AMF8, IL4AMF9, IL4AMF20, IL4AMF25, IL4MRS16, IG4200 |
||
| Circuit Breaker | DELIXI / CHNT / ABB / SCHNEIDER | ||
| Type | Open / Silent type / Trailer type / Containerized type | ||
| Fuel Tank |
<550KW, Base Fuel Tank ≥550kw, External Daily Fuel Tank/ Customized Fuel Tank |
||
| Standard Supply Scope | |||
| Engine | Brand-new engine | ||
| Alternator | Brand new brushless alternator,Single bearing, IP22 IP23, H insulation class | ||
| Base Frame | Heavy duty steel base frame | ||
| Radiator | 40℃/50℃ for open type, 50℃for soundproof type | ||
| Control panel | Control panel with protection function such as Over and Under Speed, Low/ High Battery Volt. Under / Over Generator Voltage. Low Oil Pressure, High engine temperature, Charge fail, etc. | ||
| Vibration Damper | Vibration damper between Engine/Alternator and base frame | ||
| Silencer | Industrial silencer with flexible bellow and elbow | ||
| Filters | Air filter,Oil filter and Fuel filter | ||
| Battery | 12/24V batteries | ||
| Fuel Tank | Standard 8 hours base fuel tank | ||
| Tool Kits & Manuals | Standard tool kits and complete operation/maintenance/manuals | ||
| Optional supply scope |
||
| Genset | Engine | Alternator |
| • Base fuel tank • External daily fuel tank • Silent canopy/Trailer • Fuel level sensor/Coolant level sensor |
• Water Heater • Lub-oil Heater • 50℃-55℃ Radiator • Oil drain pump |
• Temperature sensor for winding • PMG • Anti condensation heater |
| Control system | Breaker | Spare parts |
| • Automatic Transfer Switch • Remote control and monitor • Synchronization panel |
• ABB • Schneider |
• Extra air, oil and fuel filters • Tool box |
Lower Initial Cost: Open-type generators are generally cheaper than enclosed type (canopy/silent) since the lack of soundproofing and weatherproof protection.
Open type designs preventing overheating during prolonged operation. Suitable for hot climates where enclosed type generators might struggle with heat dissipation.
Open-frame generators provide direct access to engine parts, making inspections, repairs, and servicing more convenient. No need to remove an enclosure for major maintenance tasks.
Typically used for heavy-duty industrial applications where noise is not a concern. More efficient cooling can lead to better performance under continuous load.
Can be installed in well-ventilated sheds or outdoor spaces with a roof (to protect from rain).
Easier to integrate with large exhaust systems or additional cooling mechanisms.
Ideal for construction sites, mining, factories, and farms where noise is not an issue.
Noisy operation (not suitable for residential or urban areas).
Exposed components make them vulnerable to dust, rain, and extreme weather (requires proper installation).
