FAW Diesel Generator
FAW Diesel Generator
FAW Diesel Generator
FAW Diesel Generator
FAW Diesel Generator
FAW Diesel Generator

FAW Diesel Generator

  • Fawde diesel generator with power range from 15KVA to 400KVA
  • Powered by FAW brand new diesel engine. water cooled, electric start.
  • Brand new brushless self exciated single bearing alternator.
  • Heavy-duty steel base frame with 8-24 hours operation fuel tank.
  • Low noise level 68-75dBA at 7 meters.
  • Vibration damper between engine/alternator and base frame
  • Main line circuit breaker/Automatic transfer switch.

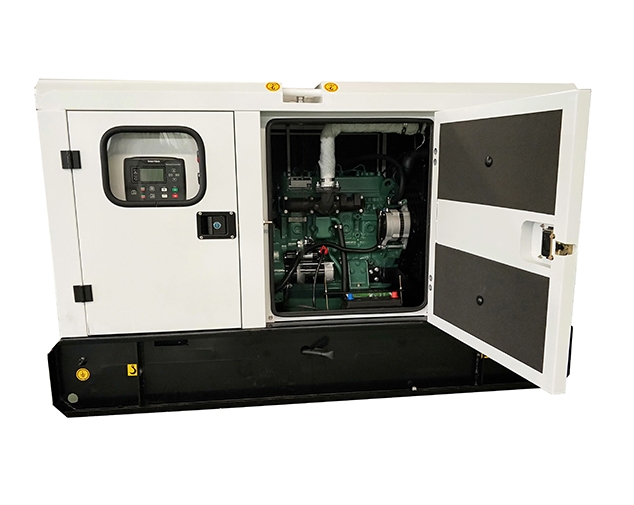

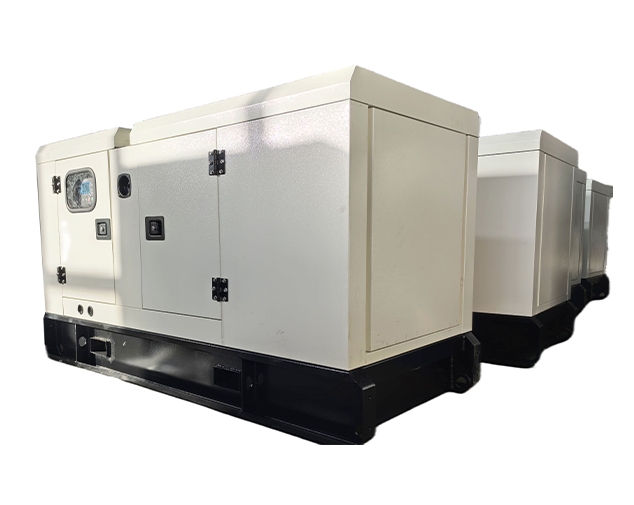

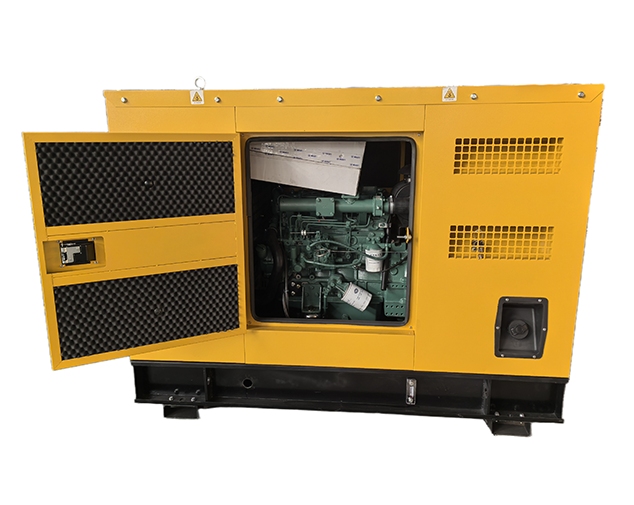

  • Type: Silent type, Open type, mobile trailer type
  • Voltage: 220/127V, 380/220V, 400/230V, 415/240V, 440/254V, 460/266V, 480/277V…
  • Phase: 3 Phase, Single Phase
  • Control panel type: manual start, auto start, remote start, synchronization panel.
Leave a message View brochure
Specifications

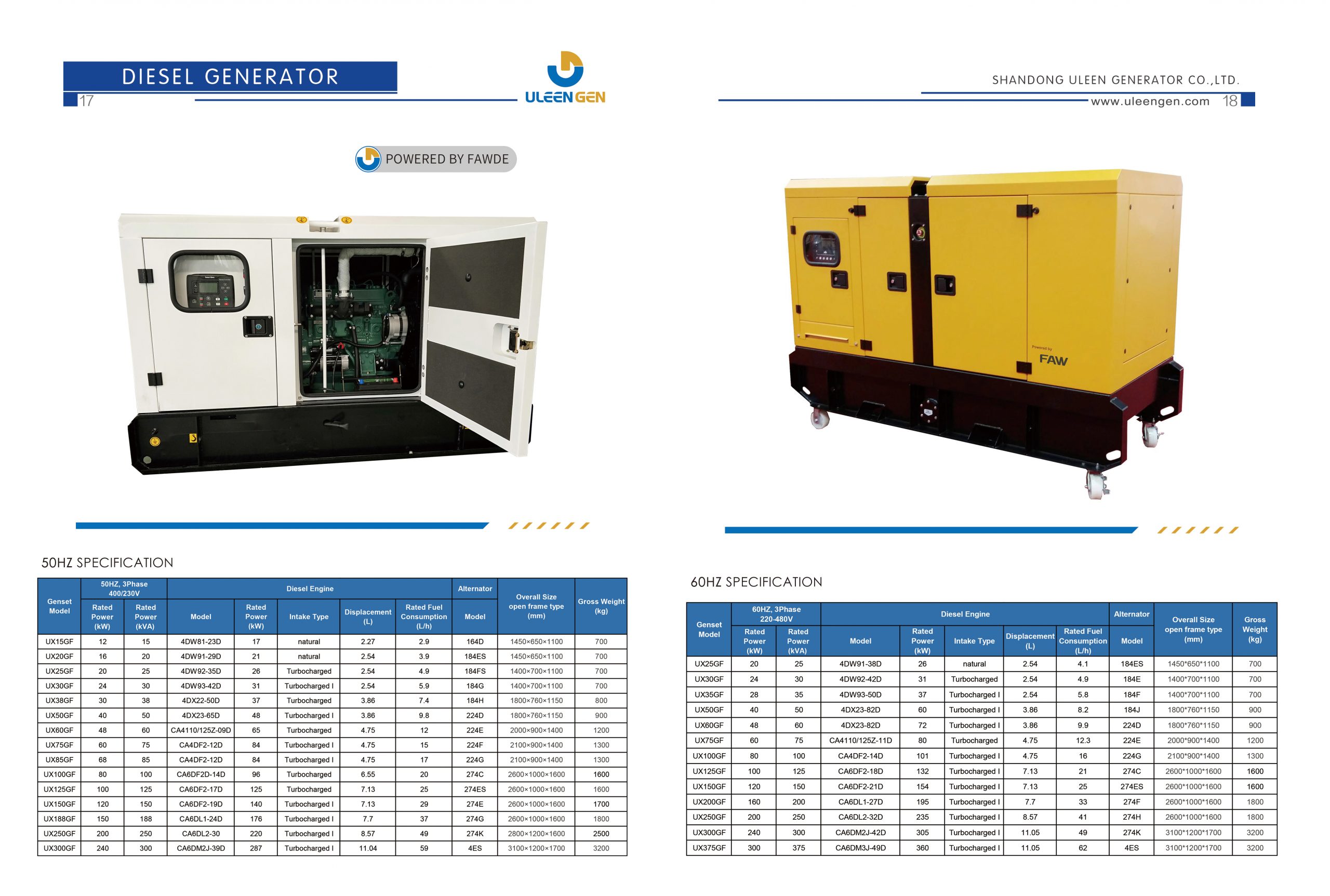

-50HZ Faw diesel generator specification



Genset Model 50HZ Diesel Engine Alternator Overall Size           open frame type(mm) Gross Weight(kg)
Power(kW) Power(kVA) Model Rated Power(kW) No. of Cylinder Bore xStroke(mm) Displacement(L) Rated Fuel Consumption(L/h) Model
UX15GF 12 15 4DW81-23D 17 4 85*100 2.27 2.9  164D 1450×650×1100 700
UX20GF 16 20 4DW91-29D 21 4 90*100 2.54 3.9  184ES 1450×650×1100 700
UX25GF 20 25 4DW92-35D 26 4 90*100 2.54 4.9  184FS 1400×700×1100 700
UX30GF 24 30 4DW93-42D 31 4 90*100 2.54 5.9  184G 1400×700×1100 700
UX38GF 30 38 4DX22-50D 37 4 102*118 3.86 7.4  184H 1800×760×1150 800
UX50GF 40 50 4DX22-65D 48 4 102*118 3.86 9.8  224D 1800×760×1150 900
UX60GF 48 60 4DX23-78D 57 4 102*118 3.86 12  224E 2000×900×1400 1200
UX75GF 60 75 CA4DF2-12D 84 4 110*125 4.75 15  224F 2100×900×1400 1300
UX85GF 68 85 CA4DF2-12D 84 4 110*125 4.75 17  224G 2100×900×1400 1300
UX100GF 80 100 CA6DF2D-14D 96 6 110*115 6.55 20  274C 2600×1000×1600 1600
UX125GF 100 125 CA6DF2-17D 125 6 110*115 7.13 25  274ES 2600×1000×1600 1600
UX150GF 120 150 CA6DF2-19D 140 6 110*115 7.13 29  274E 2600×1000×1600 1700
UX188GF 150 188 CA6DL1-24D 176 6 110*135 7.7 37  274G 2600×1000×1600 1800
UX250GF 200 250 CA6DL2-30 220 6 112*145 8.57 49  274K 2800×1200×1600 2500
UX300GF 240 300 CA6DM2J-39D 287 6 123*155 11.04 59  4ES 3100×1200×1700 3200



-60HZ Faw diesel generator specification



Genset Model 60HZ Diesel Engine Alternator Overall Size         open frame type(mm) Gross Weight(kg)
Power(kW) Power(kVA) Model Rated Power(kW) No. of Cylinder Bore xStroke(mm) Displacement(L) Rated Fuel Consumption(L/h) Model
UX25GF 20 25 4DW91-38D 26 4 90*100 2.54 4.1  184ES 1450x650x1100 700
UX30GF 24 30 4DW92-42D 31 4 90*100 2.54 4.9  184E 1400x700x1100 700
UX35GF 28 35 4DW93-50D 37 4 90*100 2.54 5.8  184F 1400x700x1100 700
UX50GF 40 50 4DX22-75D 55 4 102*118 3.86 8.2  184J 1800x760x1150 900
UX60GF 48 60 4DX23-82D 72 4 102*118 3.86 9.9  224D 1800x760x1150 900
UX75GF 60 75 4DX23-90D 66 4 102*118 3.86 12.3  224E 2000x900x1400 1200
UX100GF 80 100 CA4DF2-14D 101 4 110*125 4.75 16  224G 2100x900x1400 1300
UX125GF 100 125 CA6DF2D-16D 132 6 110*125 7.13 21  274C 2600x1000x1600 1600
UX150GF 120 150 CA6DF2-21D 154 6 110*125 7.13 25  274ES 2600x1000x1600 1600
UX200GF 160 200 CA6DL1-27D 195 6 110*135 7.7 33  274F 2600x1000x1600 1800
UX250GF 200 250 CA6DL2-32D 235 6 112*145 8.57 41  274H 2600x1000x1600 1800
UX300GF 240 300 CA6DM2J-42D 305 6 123*155 11.05 49  274K 3100x1200x1700 3200
UX400GF 320 400 CA6DM3J-49D 360 6 123*155 11.05 66  4ES 3100x1200x1700 3200



Benefits & Features
Faw diesel generator description
Frequency 50Hz/60HZ availability
Diesel engine FAW engine
Alternator Copper wire brushless self exciting alternator
Controller

Smartgen HGM6120, HGM6110, HGM410, HGM420
Circuit Breaker DELIXI / CHNT
Type Open type genset/ Silent type genset / Trailer type  genset
Fuel Tank

10-24hrs Base Fuel Tank
Standard Supply Scope
Engine Brand-new Faw diesel engine, 4 stroke, water cooled 1500rpm 1800rpm
Alternator Brand new brushless alternator,Single bearing, IP22 IP23, H insulation class
Base Frame Heavy duty steel base frame
Radiator Anti corrosion radiator
Control panel Control panel with protection function such as Over and Under Speed, Low Battery Volt. Under / Over Generator Voltage. Low Oil Pressure, High engine temperature, Charge fail, etc.
Vibration Damper Vibration damper between Engine/Alternator and base frame
Silencer Industrial silencer with flexible bellow and elbow
Filters Air filter,Oil filter and Fuel filter
Battery 12/24V batteries
Fuel Tank Standard 8 hours base fuel tank
Tool Kits & Manuals Standard tool kits and complete operation/maintenance/manuals
Optional supply scope
Genset Engine Alternator
• Base fuel tank
• External daily fuel tank
• Silent canopy/Trailer
• Fuel level sensor/Coolant level sensor		 • Water Heater
• Lub-oil Heater
• 50℃-55℃ Radiator
• Oil drain pump		 • Temperature sensor for winding
• PMG
• Anti condensation heater
Control system  Breaker Spare parts
• Automatic Transfer Switch
• Remote control and monitor
• Synchronization panel		 • Manual MCB
• ATS		 • Extra air, oil and fuel filters
• Tool box



FAWDE: FAWDE (First Automobile Works Diesel Engine) is a leading Chinese manufacturer of diesel engines from 17kw to 352kw . FAWDE engines are known for their efficiency, low emissions, and reliable power performance. As one of the longest history engine manufacturers, their engine is widely used in FAW brand truck, there is no doubt that the engines are with very reliable performance
