1000-3750KVA Diesel Generator

  • 1000-3750KVA generator set powered by Cummins/Perkins / Weichai / Yuchai / MTU

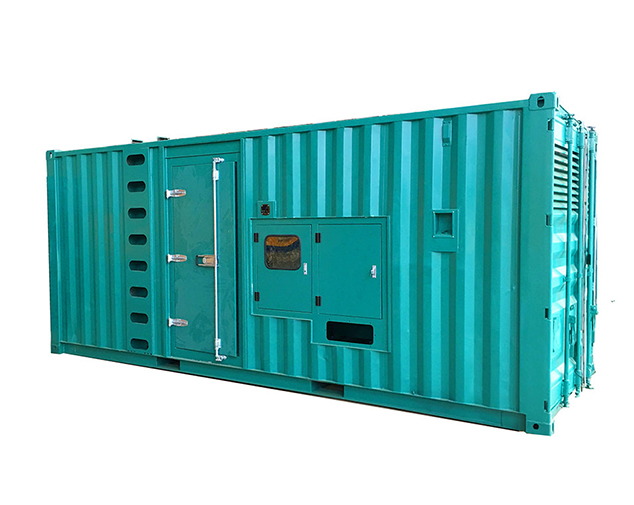

  • Type: Open type/ Containerized type generator set
  • Rated voltage: 220/127V, 380/220V, 400/230V, 415/240V, 440/254V, 460/266V, 480/277V…
  • Phase: 3 Phase
  • Alternator brand: Stamford, Leroy Somer, Mecc alte, Marathon, Siemens, Engga, Evotec and other reliable alternators.
  • Applications: Building, School, Hospital, Factory, Airport/Station, Poultry farm, Army, Mining, Data center, Outdoor construction…
Specifications

Specifications 50hz



Genset Model 50HZ Diesel Engine Alternator Overall Size(mm) Gross Weight(kg)
Power(kW) Power(kVA) Model Engine brand Rated Power(kW) No. of Cylinder Bore xStroke(mm) Displacement(L) Rated Fuel Consumption(L/h) Model
UC1000GF 800 1000 KTA38-G5 Cummins 881 12.V 159×159 37.8 186 S6L1D-E41 4700x1800x2500 9500
UC1125GF 900 1125 KTA38-G9 Cummins 990 12.V 159×159 37.8 210 S6L1D-F41 4850x1850x2500 9400
UC1250GF 1000 1250 KTA50-G3 Cummins 1115 16.V 159×159 50.3 233 S6L1D-G41 4950x2080x2560 10120
UC1500GF 1200 1500 KTA50-GS8 Cummins 1287 16.V 159×159 50.3 280 S7L1D-C41 5400x2195x2560 10600
UC1650GF 1320 1650 KTA50-G15X Cummins 1491 16.V 159×159 50.3 305 S7L1D-D41 5400x2195x2560 10800
UC2000GF 1600 2000 KTA50-G16B Cummins 1760 16.V 159×159 50.3 370 S7L1D-G41 5400x2195x2560 11000
UP1000GF 800 1000 4008TAG2 Perkins 861 8.L 160×190 30.56 187  S6L1D-E41 4760x1995x2330 7611
UP1250GF 1000 1250 4012-46TWG2A Perkins 1113 12.V 160×190 45.84 234  S6L1D-G41 4900x1860x2350 9154
UP1500GF 1200 1500 4012-46TAG2A Perkins 1331 12.V 160×190 45.84 281  S7L1D-C41 4900x1860x2350 11580
UP1650GF 1320 1650 4012-46TAG3A Perkins 1496 12.V 160×190 45.84 308  S7L1D-D41 4900x1860x2350 11580
UP1875GF 1500 1875 4016TAG1A Perkins 1588 16. V 160×190 61.12 350  S7L1D-F41 6800x2780x3500 12000
UP2000GF 1600 2000 4016TAG2A Perkins 1766 16. V 160×190 61.12 373  S7L1D-G41 6800x2780x3500 12000
UW1000GF 800 1000 8M33D975E310 Weichai 890 8.V 150×185 26.14 186 S6L1D-E41 4000×1700×2100 7000
UW1125GF 900 1125 12M33D1108E200 Weichai 1007 12.V 150×185 39.2 210 S6L1D-F41 4600×1900×2235 7600
UW1250GF 1000 1250 12M33D1210E200 Weichai 1100 12.V 150×185 39.2 233 S6L1D-G41 4600×1900×2235 7800
UW1375GF 1100 1375 12M33D1320E200 Weichai 1200 12.V 150×185 39.2 257 S6L1D-G41 4600×1900×2235 8000
UW1500GF 1200 1500 12M33D1500E310 Weichai 1350 12.V 150×185 39.2 280 S7L1D-C41 4600×1900×2400 8300
UW1625GF 1300 1625 16M33D1580E310 Weichai 1436 16.V 150×185 52.3 303 S7L1D-D41 5200×2000×2430 10500
UW1875GF 1500 1875 16M33D1800E310 Weichai 1680 16.V 150×185 52.3 350 S7L1D-F41 5200×2000×2430 11000
UW2000GF 1600 2000 16M33D1980E310 Weichai 1800 16.V 150×185 52.3 373 S7L1D-G41 5200×2000×2430 11600





Specifications 60hz



Genset Model 60HZ Diesel Engine Alternator Overall Size(mm) Gross Weight(kg)
Power(kW) Power(kVA) Model Engine brand Rated Power(kW) No. of Cylinder Bore xStroke(mm) Displacement(L) Rated Fuel Consumption(L/h) Model
UC1250GF 900  1125  KTA38-G4 Cummins 1007 12.V 159*159 37.9 234  HCI634J 4260x1500x2400 6100
UC1500GF 1100  1375  KTA50-G3 Cummins 1220 16.V 159*159 50.3 280  S6L1D-G41 5000x2020x2500 9420
UC1500GF 1260  1575  KTA50-G9 Cummins 1383 16.V 159*159 50.3 280  S6L1D-H41 5000x2020x2500 9600
UP1000GF 800 1000 4008TAG2 Perkins 842 8.V 160*190 30.561 186  S6L1D-D41 4760x1980x2330 7300
UP1250GF 1000 1250 4012-46TWG2A Perkins 1055 12.V 160*190 45.842 233  S6L1D-F41 4900x1860x2350 9200
UP1500GF 1200 1500 4012-46TAG2A Perkins 1331 12.V 160*190 45.842 275  S6L1D-H41 4900x1860x2350 9500
UW1000GF 800 1000 8M33D1012E311 Weichai 910 8 150*185 26.14 186  S6L1D-D41 4320x1900x2340 7000
UW1250GF 1000 1250 12M33D1265E201 Weichai 1150 12 150*185 39.2 233  S6L1D-F41 4600x1900x2340 7700
UW1500GF 1200 1500 12M33D1420E201 Weichai 1290 12 150*185 39.2 280  S6L1D-H41 4600x1900x2340 8300
UW1875GF 1500 1875 16M33D1785E311 Weichai 1625 16 150*185 52.3 350  S7L1D-D41 5200×2000×2430 11000
UW2000GF 1600 2000 16M33D1920E311 Weichai 1750 16 150*185 52.3 373  S7L1D-E41 5200×2000×2430 11500
UY1000GF 800 1000 YC6TH1350-D33 Yuchai 900 6 175*195 28.14 186  TCU428B 4650x1850x2550 6500
UY1250GF 1000 1250 YC12VTD1680-D32 Yuchai 1120 12 152*180 39.2 233  TCU428C 5000x2150x2600 9100
UY1500GF 1200 1500 YC12VTD2070-D32 Yuchai 1380 12 152*180 39.2 280  TCU428E 5000x2150x2600 9400
UY1650GF 1320 1650 YC16VTD2270-D32 Yuchai 1520 16 152*180 52.26 308  TCU428F 5300x2150x2950 11000
UY1875GF 1500 1875 YC16VTD2510-D32 Yuchai 1680 16 152*180 52.26 350  TCU468B 5500x2180x2550 11700
UM1650GF 1320 1650 12V4000G43S MTU 1520 12 170*210 57.2 305 LSA50.2 L7 6150x2150x2400 13000
UM1875GF 1500 1875 12V4000G83S MTU 1736 12 170*210 76.3 370 LSA50.2 L8 6150x2150x2400 13500
UM2250GF 1800 2250 16V4000G43S MTU 2020 16 170*210 76.3 370 LSA52.3 S5 6500x2600x2500 17000
UM2500GF 2000 2500 16V4000G83S MTU 2280 16 170*210 95.4 462 LSA52.3 S6 6500x2600x2500 23500
UM3125GF 2500 3125 20V4000G83S MTU 2740 20 170*210 95.4 508 LSA52.3 L12 8300x2950x2550 24000
Benefits & Features

The main application of generator set 1000KVA-3750KVA





Large data centers:

Data centers have high requirements for power supply continuity and quality. 1-2 MW generator sets are typically used to provide backup power for the entire data cente, ensuring uninterrupted operation of critical loads such as servers and cooling systems.

Hospitals:

These power generator sets ensure the reliable power supply to operating rooms, ICUs , emergency rooms, medical imaging equipment (such as CT and MRI), as well as lighting and ventilation systems, directly impacting the patients’ safety.

Airports and transportation hubs:

The generator sets maintain the operation of basic terminal lighting, flight information display systems, security equipment, communications systems, and critical equipment in air traffic control towers, preventing disruptions and safety incidents.

Large commercial buildings and shopping malls:

The Cummins Perkins MTU generator sets provide backup power for emergency lighting, fire protection systems, elevators, surveillance and security systems, and for key tenants (such as data center computer rooms and cold storage facilities in large supermarkets), ensuring personnel safety and minimizing property damage.

Factories and Production Lines:

Gensets providing backup power to entire factories or critical production lines, such as semiconductor manufacturing plants, chemical plants, automobile manufacturers, and food processing plants. Once production processes are interrupted, restarting them is extremely costly.

Mines and Quarries:

In remote locations or mining areas with unstable power grids, generator sets may serve as primary power sources or operate in parallel with the grid to power mining equipment, crushers, conveyor belts, lighting, and camp life.

Major Engineering Projects:

During the initial construction phase of large-scale infrastructure projects such as bridges, tunnels, and subways, construction sites are often not connected to the municipal power grid, requiring high-power Cummins/Perkins/MTU generator sets as temporary main power sources to power various heavy machinery and equipment.

Peak shaving and grid-connected power generation:

During periods of grid power shortage (such as peak summer demand), the power generator sets can be activated and connected to the grid, supplying power to the grid, thus reducing peak loads. They can also be used to supplement renewable energy sources (such as wind and solar) to ensure stable power supply during calm or cloudy days.

Oil and gas field development:

During the exploration and development of oil and gas fields, the Perkins generator sets provide power for drilling platforms, fracking operations, production equipment, and worker living quarters.

Large-scale events:

The generator sets provide primary or backup power for temporary large-scale events such as concerts, sporting events, and exhibitions, meeting the high-energy demands of stage lighting, sound systems, large screens, and catering areas.
