10-50KVA Diesel Generator

•10-50kva silent generator set powered by Cummins/ Perkins /Deutz / Isuzu / Weichai / Yuchai / Yangdong
• Silent type/Open type/ mobile trailer type is optional
• Voltage: 220/127V, 380/220V, 400/230V, 415/240V, 440/254V, 460/266V, 480/277V…
• Phase: 3 Phase, Single Phase
• Alternator brand: Stamford, Leroy Somer, Mecc alte, Marathon, Engga, Evotec and other reliable alternators.
• Application: Building, School, Hospital, Factory, Airport/Station, Poultry farm, Army, Outdoor construction…

Leave a message

Specifications

Specifications 50hz

Genset Model	50HZ		Diesel Engine							Alternator	Overall Size(mm)	Gross Weight(kg)
Genset Model	Power (kW)	Power (kVA)	Model	Engine brand	Rated Power(kW)	No. of Cylinder	Bore xStroke(mm)	Displacement(L)	Rated Fuel Consumption(L/h)	Model	Overall Size(mm)	Gross Weight(kg)
UC20GF	16	20	4B3.9-G2	Cummins	24	4.L	102×120	3.9	3.7	S0L2-G1	1800x700x1200	700
UC25GF	20	25	4B3.9-G2	Cummins	24	4.L	102×120	3.9	4.6	S0L2-M1	1800x700x1200	700
UC30GF	24	30	4BT3.9-G1	Cummins	36	4.L	102×120	3.9	5.6	S0L2-P1	1800x700x1200	700
UC38GF	30	38	4BT3.9-G1	Cummins	36	4.L	102×120	3.9	7.1	S1L2-J1	1800x700x1200	700
UC50GF	40	50	4BTA3.9-G2	Cummins	50	4.L	102×120	3.9	9.3	S1L2-R1	2000x750x1300	800
UP10GF	8	10	403A-11G1	Perkins	9	3.L	77×81	1.131	1.9	S0L1-H1	1580x810x930	500
UP13GF	10	13	403A-15G1	Perkins	12	3.L	84×90	1.496	2.4	S0L1-L1	1580x810x930	520
UP20GF	16	20	404A-22G1	Perkins	18	4.L	84×100	2.216	3.8	S0L2-G1	1580x810x990	540
UP25GF	20	25	404D-22TG	Perkins	25	4.L	84×100	2.216	4.7	S0L2-M1	1580x810x990	540
UP30GF	24	30	1103A-33G	Perkins	28	3.L	105×127	3.3	5.6	S0L2-P1	1580x810x1165	660
UP40GF	32	40	1103A-33TG1	Perkins	42	3.L	105×127	3.3	7.5	S1L2-K1	1595x810x1150	730
UP45GF	36	45	1103A-33TG1	Perkins	42	3.L	105×127	3.3	8.4	S1L2-N1	1595x810x1150	730
UW25GF	20	25	WP2.3D25E200	Weichai	23	4.L	89×92	2.3	4.7	S0L2-M1	1500x700x1300	600
UW30GF	24	30	WP2.3D33E200	Weichai	30	4.L	89×92	2.3	5.6	S0L2-P1	1550x700x1300	680
UW38GF	30	38	WP2.3D40E200	Weichai	36	4.L	89×92	2.3	7.1	S1L2-J1	1650x700x1300	700
UW45GF	36	45	WP2.3D48E200	Weichai	44	4.L	89×92	2.3	8.4	S1L2-N1	1650x700x1300	730
UW50GF	40	50	WP2.3D48E200	Weichai	44	4.L	89×92	2.3	9.4	S1L2-R1	1650x700x1350	750
UI20GF	16	20	JE493DB-04	Isuzu	21	4	93×102	2.771	3.7	164D	2200x950x1200	750
UI25GF	20	25	JE493DB-02	Isuzu	24	4	93×102	2.771	4.6	184FS	2200x950x1200	780
UI30GF	24	30	JE493ZDB-04	Isuzu	28	4	93×102	2.771	5.6	184G	2200x950x1200	760
UI40GF	32	40	JE493ZLDB-02	Isuzu	38	4	93×102	2.771	7.5	184J	2200x950x1200	785
UI50GF	40	50	JE493ZLDC-02	Isuzu	51	4	93×102	2.771	9.4	184J	2200x950x1200	785

Specifications 60hz

Genset Model	60HZ		Diesel Engine							Alternator	Overall Size (mm)	Gross Weight(kg)
Genset Model	Power (kW)	Power (kVA)	Model	Engine brand	Rated Power(kW)	No. of Cylinder	Bore xStroke(mm)	Displacement(L)	Rated Fuel Consumption(L/h)	Model	Overall Size (mm)	Gross Weight(kg)
UC25GF	20	25	4B3.9-G11	Cummins	23	4	102*120	3.9	4.7	S0L2-M1	1800x700x1200	800
UC30GF	24	30	4B3.9-G2	Cummins	30	4	102*120	3.9	6.5	S0L2-P1	1800x700x1200	800
UC40GF	32	40	4BT3.9-G2	Cummins	40	4	102*120	3.9	9.3	S0L2-P1	1800x700x1200	810
UP10GF	8	10	403D-11G	Perkins	11.4	3	77*81	1.131	1.9	S0L1-H1	1580x810x930	550
UP12GF	10	12	403D-15G	Perkins	13.5	3	84*90	1.496	2.4	S0L1-L1	1580x810x930	560
UP15GF	12	15	403D-15G	Perkins	13.5	3	84*90	1.496	2.9	S0L1-P1	1580x810x930	580
UP20GF	16	20	404D-22G	Perkins	22	4	84*100	2.216	3.8	S0L2-F1	1600x810x1160	660
UP25GF	20	25	404D-22G	Perkins	22	4	84*100	2.216	4.7	S0L2-M1	1600x810x1160	660
UP30GF	24	30	404D-22TG	Perkins	30	4	84*100	2.216	5.6	S0L2-P1	1600x810x1160	660
UP35GF	28	35	1103A-33G	Perkins	32	3	105*127	3.3	6.5	S1L2-J1	1580x810x1160	680
UP50GF	40	50	1103A-33TG1	Perkins	49	3	105*127	3.3	9.4	S1L2-N1	1580x810x1160	700
UW25GF	20	25	WP2.3D30E201	Weichai	27	4	89*92	2.289	4.6	184ES	1550x700x1300	680
UW30GF	24	30	WP2.3D30E201	Weichai	27	4	89*92	2.289	5.6	184E	1550x700x1300	700
UW40GF	32	40	WP2.3D41E201	Weichai	37	4	89*92	2.289	7.5	184G	1650x700x1300	720
UW44GF	35	44	WP2.3D47E201	Weichai	43	4	89*92	2.289	8.2	184H	1650x700x1300	740
UW50GF	40	50	WP2.3D58E201	Weichai	53	4	89*92	2.289	9.3	184J	1650x750x1200	750
UW56GF	45	56	WP2.3D58E201	Weichai	53	4	89*92	2.289	10.5	224C	1650x750x1200	760
UI25GFS	20	25	JE493DB-03	Isuzu	24	4	93×102	2.771	4.6	184ES	2200x950x1200	750
UI30GFS	24	30	JE493DB-01	Isuzu	28	4	93×102	2.771	5.6	184E	2200x950x1200	760
UI38GFS	30	38	JE493ZDB-03	Isuzu	38	4	93×102	2.771	7.1	184G	2200x950x1200	780
UI50GFS	40	50	JE493ZLDB-01	Isuzu	46	4	93×102	2.771	9.3	184J	2200x950x1200	790

Benefits & Features

✅Our generator silent canopy is made by Galvanized sheet (anti-rust) and it’s powder coated for the generators installed near the sea area with high humidity. and our alternator with thick epoxy coating. for the details, please consult with our team.

✅designed with upper lifthole and forklift hole(easy to move)

✅Standard fuel tank capacity is 8 hours base fuel tank, the fuel tank capacity could be customized as cilents’ requirements as well.

✅the most popular Color is white, yellow, green, blue. the color is optional

✅Logo can be customized

✅Canopy could be customized, the color, the thickness, the materials, etc.

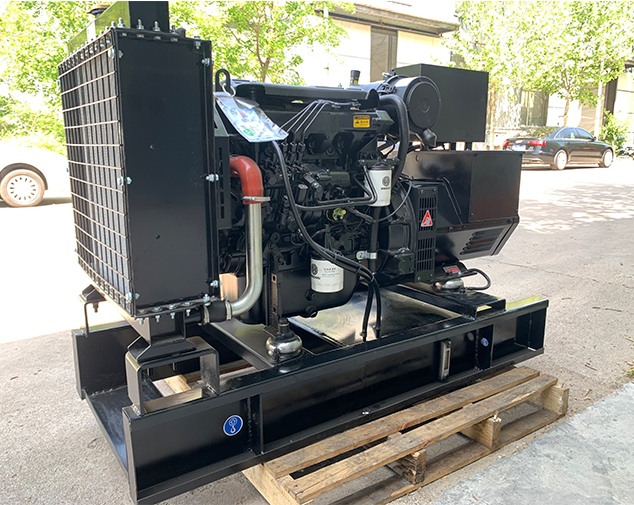

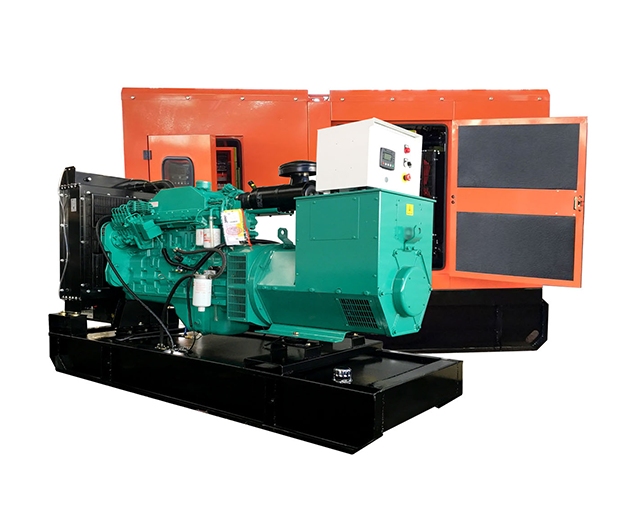

Open type 10-50kva diesel generator

Open type generator has no silent canopy, accordingly shipping size is much smaller, which is more cost-effective. and it is better for cooling and ventilation. Suitable for hot areas where enclosed type generators might struggle with heat dissipation.

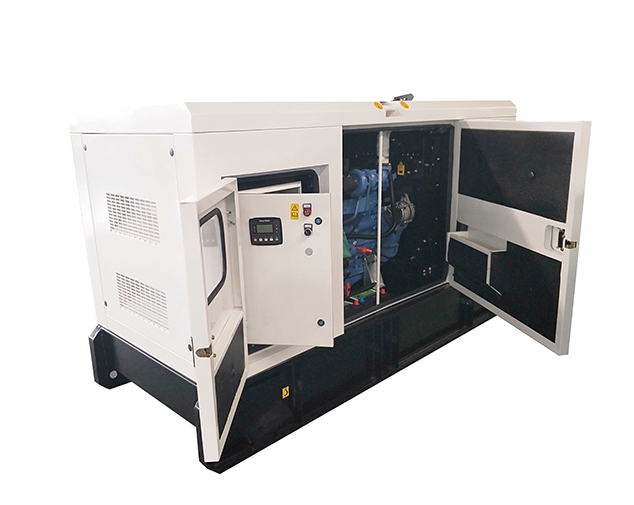

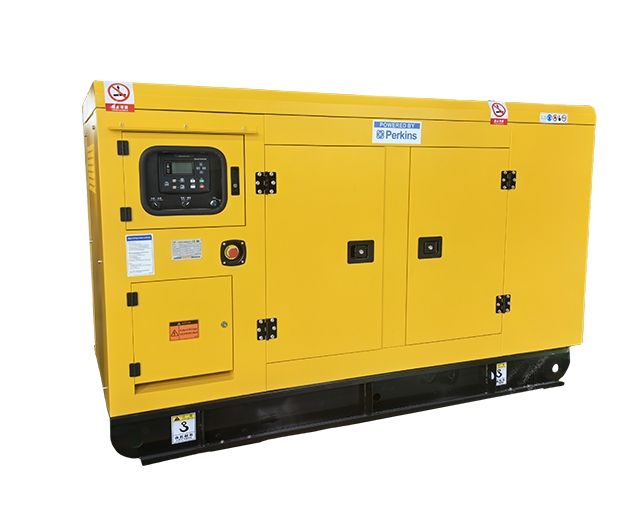

Silent type 10-50kva diesel generator

silent diesel generators with silent canopy, which the noise level can be 70-75DB at 7 meters. It is ideal for urban areas, hospitals, schools, offices, and residential use.

Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.

Any needs in land or marine emergency power, backup power and primary electric power, please don’t hesitate to contact us.
